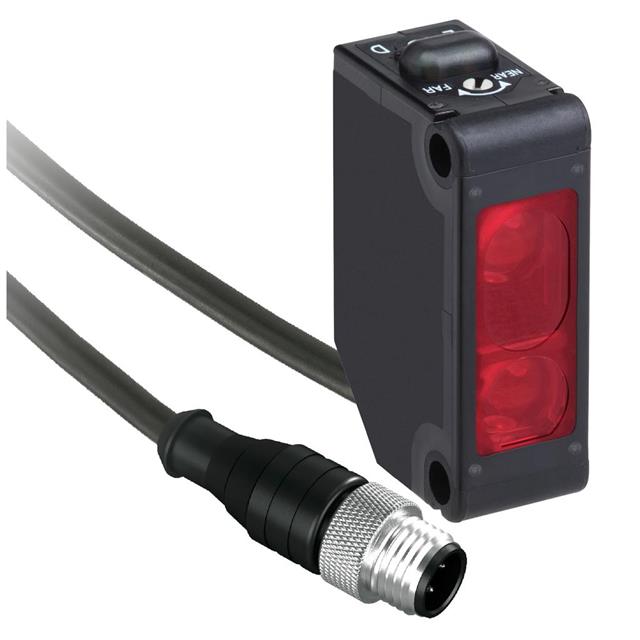

XUM8APCNL03M12
ObsoleteSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, OSISENSE XU SERIES, DIFFUSE, 300 MM, PNP, 12 TO 24 VDC, M12 CONNECTOR
XUM8APCNL03M12
ObsoleteSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, OSISENSE XU SERIES, DIFFUSE, 300 MM, PNP, 12 TO 24 VDC, M12 CONNECTOR
Description
General part information
XUM8APCNL03M12
Diffuse Optical Sensor 11.811" (300mm) PNP-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUM8APCNL03M12 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Green LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | NO, PNP-NC |
| Response Time | 1 ms |
| Sensing Distance | 11.811 " |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
