WG160PR9SY
ActiveAirBorn, a Molex company
RECTANGULAR PCB CONNECTORS (0.10
WG160PR9SY
ActiveAirBorn, a Molex company
RECTANGULAR PCB CONNECTORS (0.10
Description
General part information

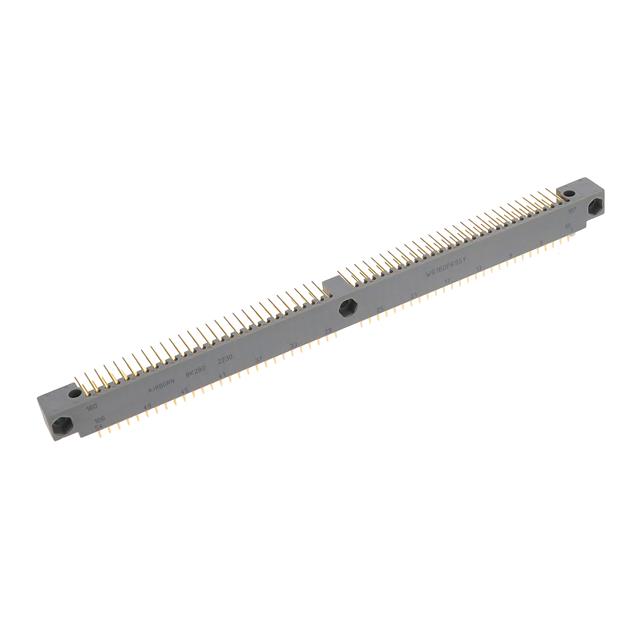

WG160PR9SY
160 Connector Plug, Male Pins Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | WG160PR9SY |
|---|---|
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Current Rating | 5 A |
| Features | Mounting Flange, Mating Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 160 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Pitch | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
