VC15MA0160KBA
ActiveKYOCERA AVX
VARISTOR 24.5V 1.2KA 2220
VC15MA0160KBA
ActiveKYOCERA AVX
VARISTOR 24.5V 1.2KA 2220
Description
General part information
VC15MA0160KBA

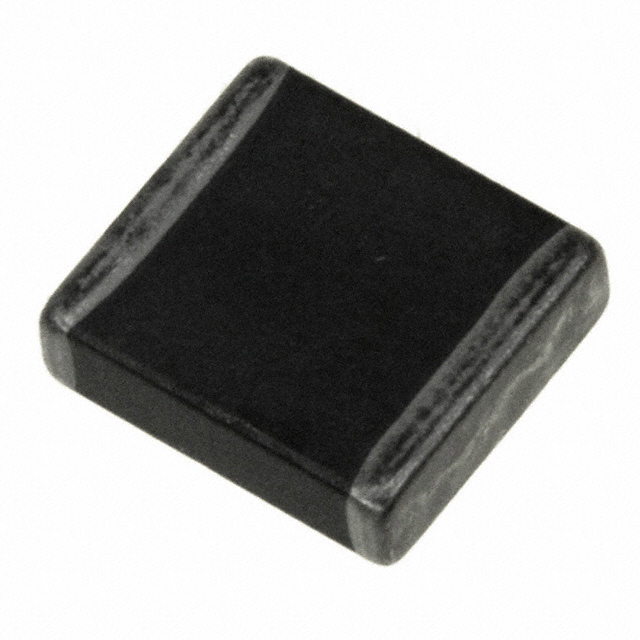

24.5 V 1.2 kA Varistor 1 Circuit Surface Mount, MLCV 2220 (5750 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | VC15MA0160KBA |
|---|---|
| Capacitance | 11000 pF |
| Current - Surge | 1200 A |
| Energy | 5.8 J |
| Maximum AC Volts | 14 V |
| Maximum DC Voltage | 16 V |
| Mounting Type | MLCV, Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2220 (5750 Metric) |
| Varistor Voltage (Max) | 26.95 V |
| Varistor Voltage (Min) | 22.05 V |
| Varistor Voltage (Typ) | 24.5 V |
