V7C00017
ActivePasternack
BNC R/A BULKHEAD JACK PCB TYPE
V7C00017
ActivePasternack
BNC R/A BULKHEAD JACK PCB TYPE
Description
General part information
V7C00017

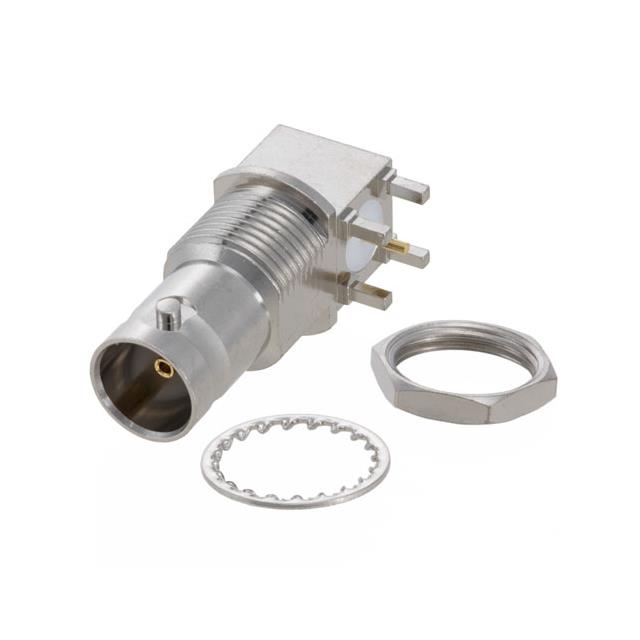

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | V7C00017 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Nickel, Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 12 Gbps |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
