Description
General part information

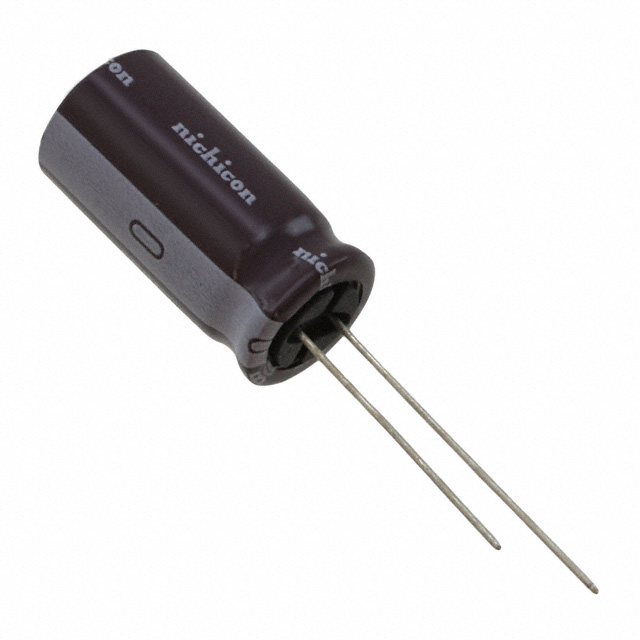

UPB1C222MHD
2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPB1C222MHD |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 ĄF |
| Height - Seated (Max) | 1.043 in |
| Lead Spacing | 0.197 in |
| Lifetime | 7000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 710 mA, 816.5 mA |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
