MAL204271109E3
ActiveVishay Dale

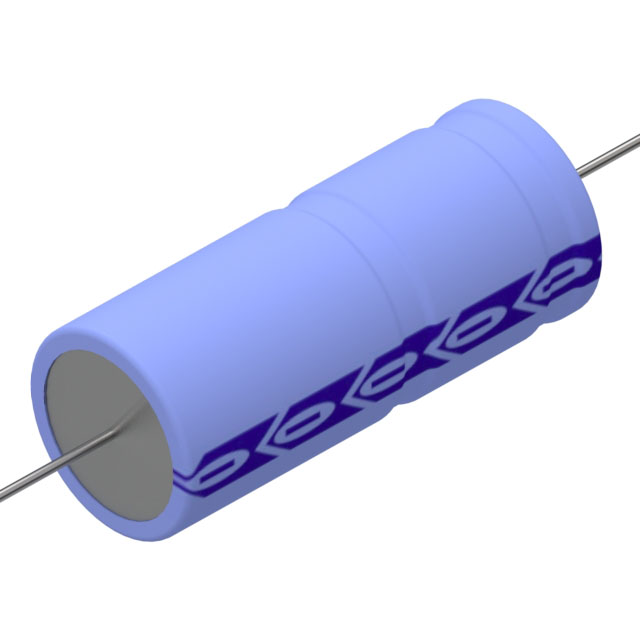

CAP ALUM 10UF 450V AXIAL TH
MAL204271109E3
ActiveVishay Dale
CAP ALUM 10UF 450V AXIAL TH
Description
General part information
MAL204271109E3
10 µF 450 V Aluminum Electrolytic Capacitors Axial, Can 5.9Ohm @ 100Hz 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL204271109E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 5.9 Ohm |
| Impedance | 3.3 Ohm |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 126.9 mA |
| Size / Dimension Diameter | 0.492 in |
| Size / Dimension Length | 1.181 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 450 V |
