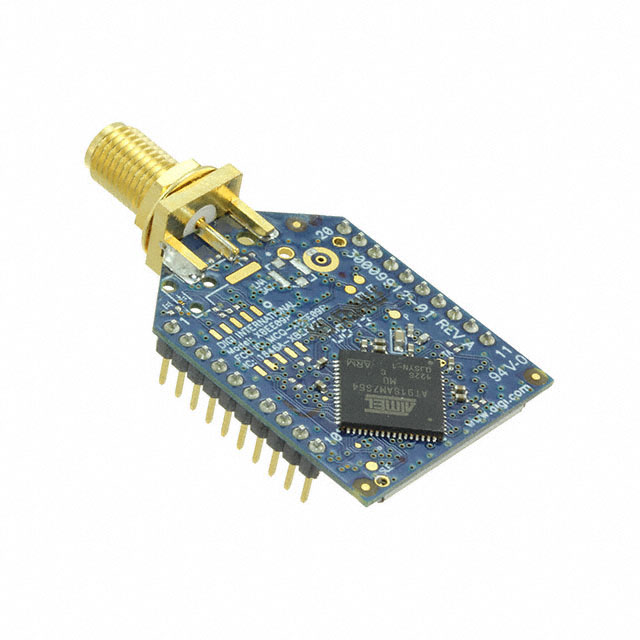

XBP09-DMSIT-156
ObsoleteDigi International
RF TXRX MOD ISM<1GHZRPSMA TH
XBP09-DMSIT-156
ObsoleteDigi International
RF TXRX MOD ISM<1GHZRPSMA TH
Description
General part information
XBP09-DMSIT-156
General ISM < 1GHz Transceiver Module 900MHz Antenna Not Included, RP-SMA Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | XBP09-DMSIT-156 |
|---|---|
| Antenna Type | Antenna Not Included, RP-SMA |
| Current - Receiving | 80 mA |
| Current - Transmitting | 210 mA |
| Data Rate | 156 kbps |
| Frequency | 900 MHz |
| Modulation | FHSS |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 17 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -100 dBm |
| Serial Interfaces | UART |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 3 V |
