2005372-2
ActiveTE Connectivity AMP Connectors
MT-II SLD 6P PLUG ASSY(A) BLK
2005372-2
ActiveTE Connectivity AMP Connectors
MT-II SLD 6P PLUG ASSY(A) BLK
Description
General part information
2005372-2

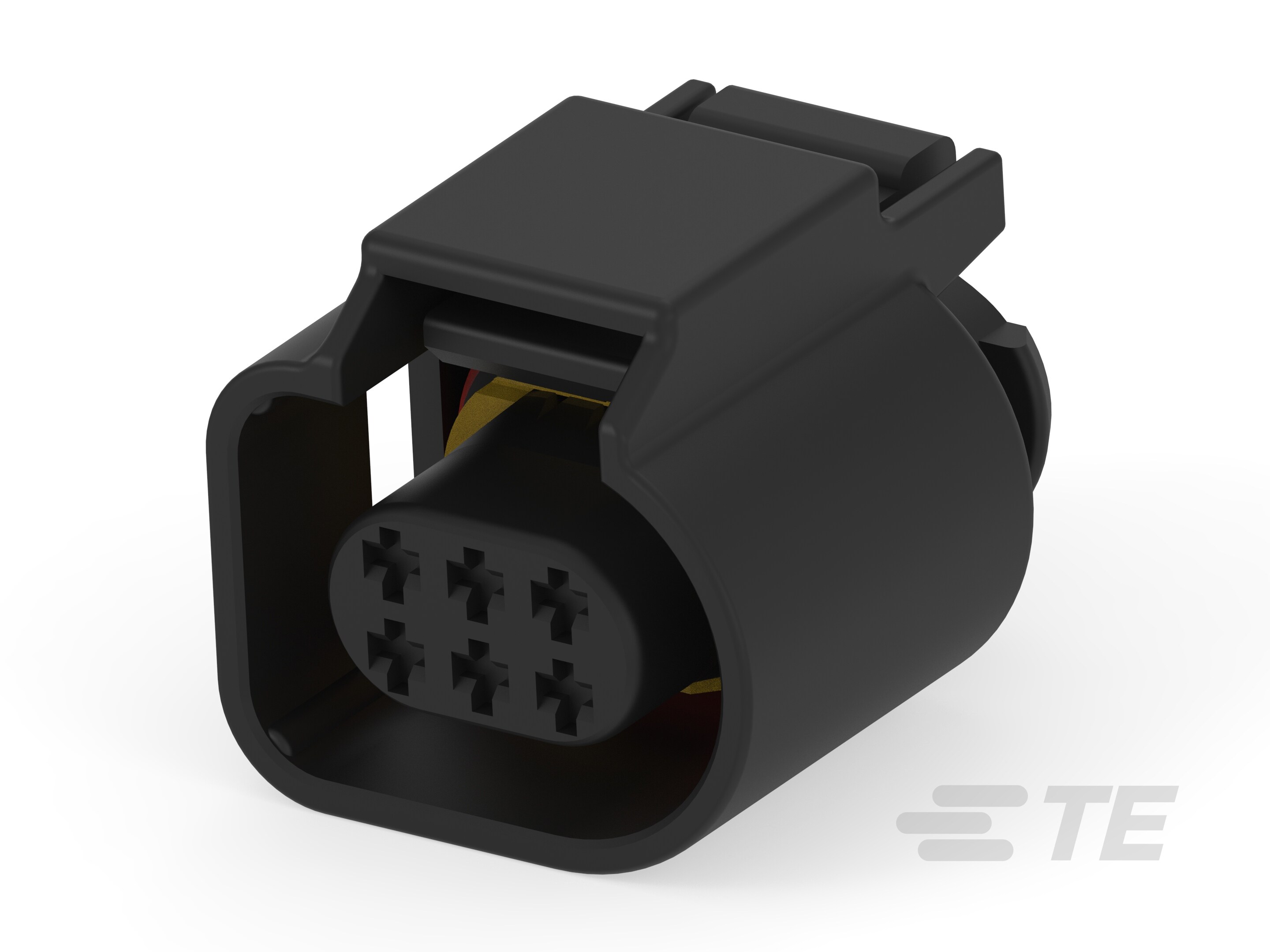

6 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4 mm [.16 in] Centerline, Sealable, Black, Wire & Cable, Power, Micro Timer II
Technical Specifications
Parameters and characteristics for this part
| Specification | 2005372-2 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Pitch | 0.157 in |
| Row Spacing | 0.157 in |
