095-902-574-150
ActiveMcGill Microwave Systems
CABLE ASSEMBLY 1.32MM CABLE 0.15M SMA TO AMC F-PL BAG
095-902-574-150
ActiveMcGill Microwave Systems
CABLE ASSEMBLY 1.32MM CABLE 0.15M SMA TO AMC F-PL BAG
Description
General part information
095-902-574-150

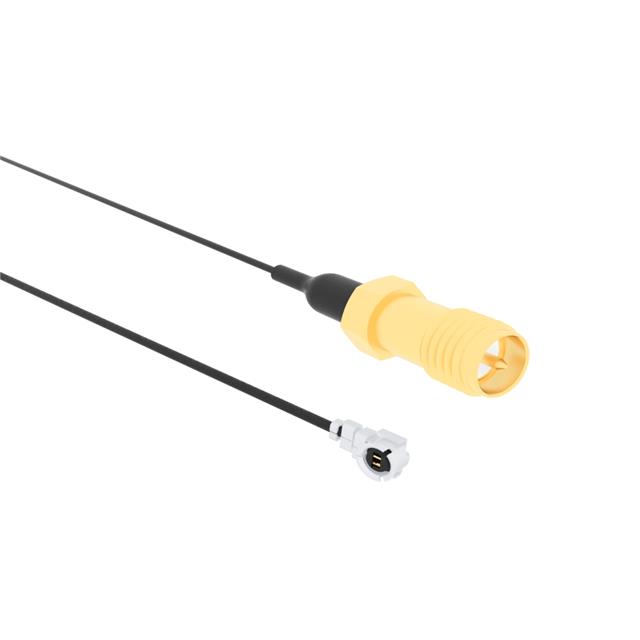

Cable Assembly Coaxial U.FL (UMCC), AMC to RP-SMA 1.32mm OD Coaxial Cable 5.906" (150.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-902-574-150 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | U.FL (UMCC), AMC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.32 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.32mm OD Coaxial Cable |
| Cable Type Size | 1.32 |
| Color | Black |
| Frequency - Max | 9 GHz |
| Length | 5.906 in |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, AMC, U.FL (UMCC) |
