2-2301239-1
ActiveTE Connectivity AMP Connectors

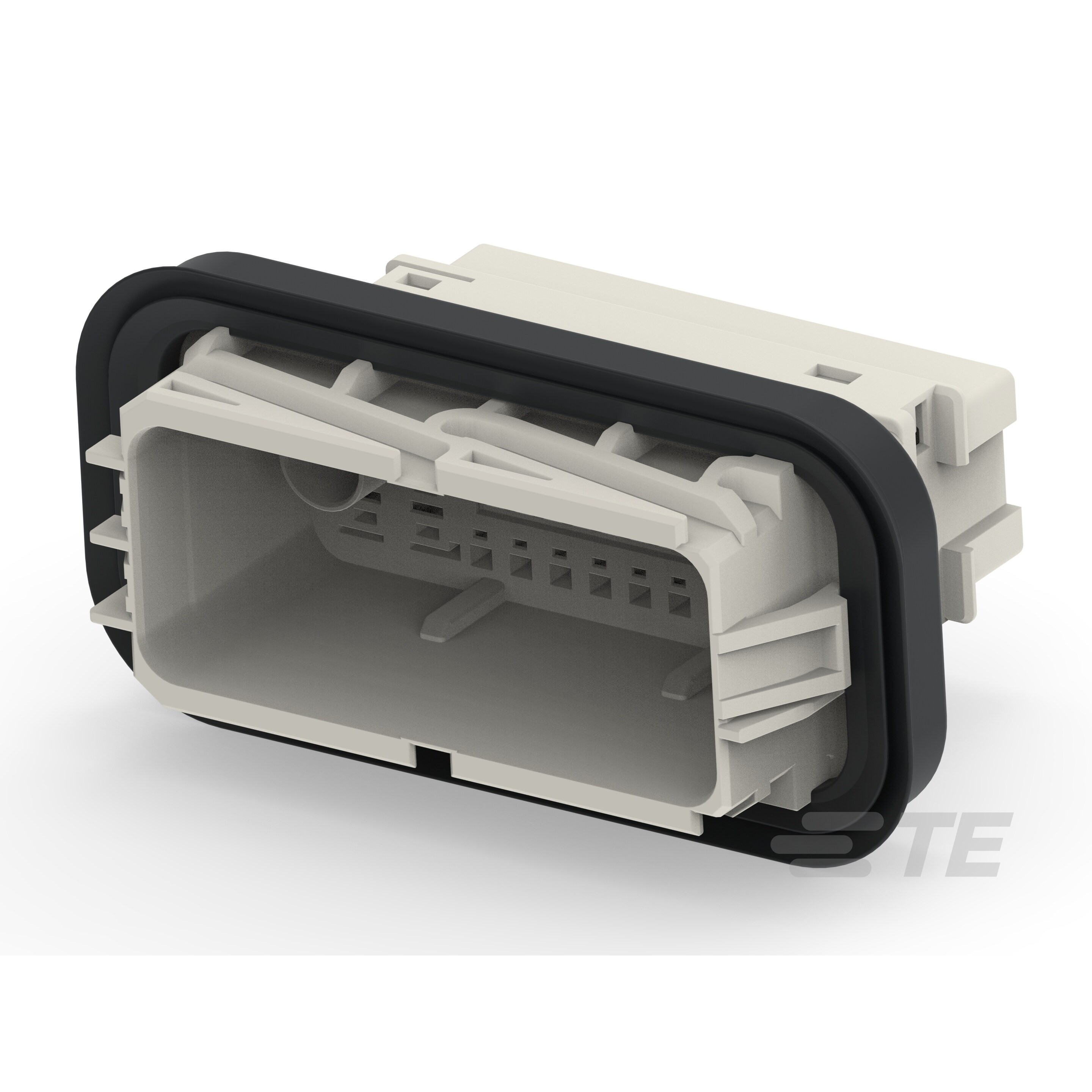

DTB TAB HSG ASSY, 49POSN., FAKRA TYPE
2-2301239-1
ActiveTE Connectivity AMP Connectors
DTB TAB HSG ASSY, 49POSN., FAKRA TYPE
Description
General part information
2-2301239-1
49 Position Housing, Housing for Male Terminals, Wire-to-Panel / Wire-to-Wire, 2.54 mm / 3.5 mm / 5.5 mm [.1 in / .14 in / .22 in] Centerline
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2301239-1 |
|---|---|
| Color | Natural |
| Connector Type | Housing for Male Insert |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Push-Pull |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line), Panel Mount |
| Number of Positions | 49 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
