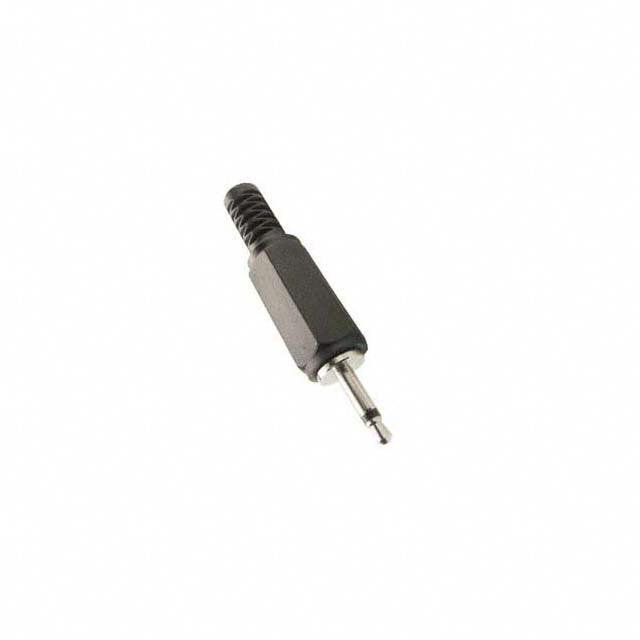

Specification	MP-2501

Body Color	Black, Silver
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating	Nickel
Current Rating	0.5 A
Features	Strain Relief
Gender	Male
Housing Material	PE, Polyethylene
Includes	Connector, Handle
Includes Total Count	2 pcs
Industry Recognized Mating Diameter (Headphone - Miniature)	2.5 mm
Industry Recognized Mating Diameter (Headphone - Sub Mini)	2.5 mm
Industry Recognized Mating Diameter (Headphone Options)	Miniature, Sub Mini
Internal Switch(s)	Does Not Contain Switch
Mating Length/Depth	0.433 in
Mounting Type	Free Hanging (In-Line)
Number of Conductors	2 Conductors
Number of Contacts	2 Contacts
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)
Voltage - Rated	3 VDC
