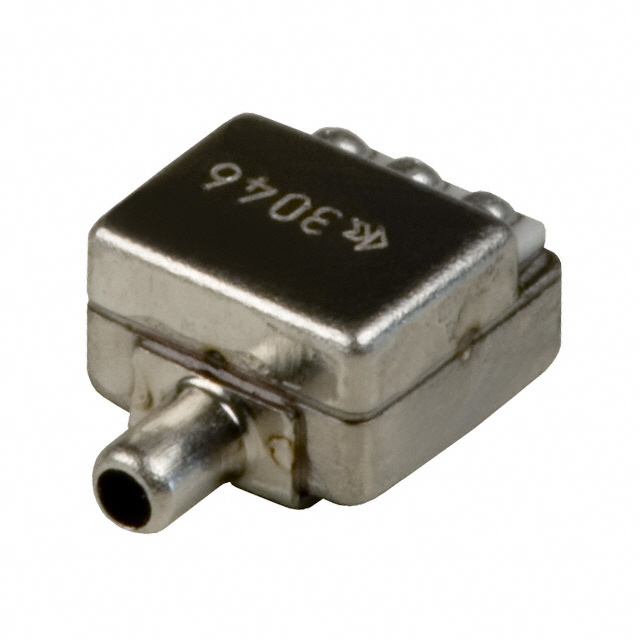

EM-23046-C36
ObsoleteKnowles Syfer
MIC COND ANALOG OMNI -56DB
EM-23046-C36
ObsoleteKnowles Syfer
MIC COND ANALOG OMNI -56DB
Description
General part information
EM-23046-C36
100 Hz ~ 5 kHz Analog Microphone Electret Condenser 0.9 V ~ 10 V Omnidirectional (-56dB ±3dB @ 74dB SPL) Screw Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | EM-23046-C36 |
|---|---|
| Current - Supply | 50 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 5 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.09 " |
| Impedance | 4.4 kOhms |
| Output Type | Analog |
| Port Location | Side |
| Sensitivity (Nominal) | -56 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Square |
| Size / Dimension Length | 0.141 in |
| Size / Dimension Width | 0.141 in |
| Termination | Screw Terminals |
| Type | Electret Condenser |
| Voltage - Rated | 1.3 VDC |
| Voltage Range (Max) | 10 V |
| Voltage Range (Min) | 0.9 V |
