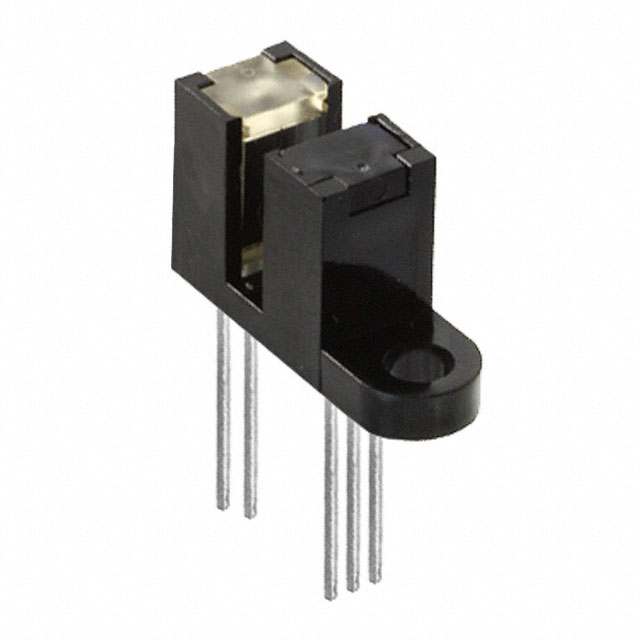

OPB472P11
ObsoleteTT Electronics/BI
SENSOR OPTICAL 3.18MM PCB MOUNT
OPB472P11
ObsoleteTT Electronics/BI
SENSOR OPTICAL 3.18MM PCB MOUNT
Description
General part information
OPB472P11
Optical Sensor Through-Beam 0.125" (3.18mm) PCB Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB472P11 |
|---|---|
| Current - Supply | 7.5 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Inverted, Pull-Up Resistor |
| Package / Case | PCB Mount |
| Response Time | 50 ns |
| Sensing Distance | 0.125 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 16 V |
| Voltage - Supply (Minimum) | 4.5 V |
