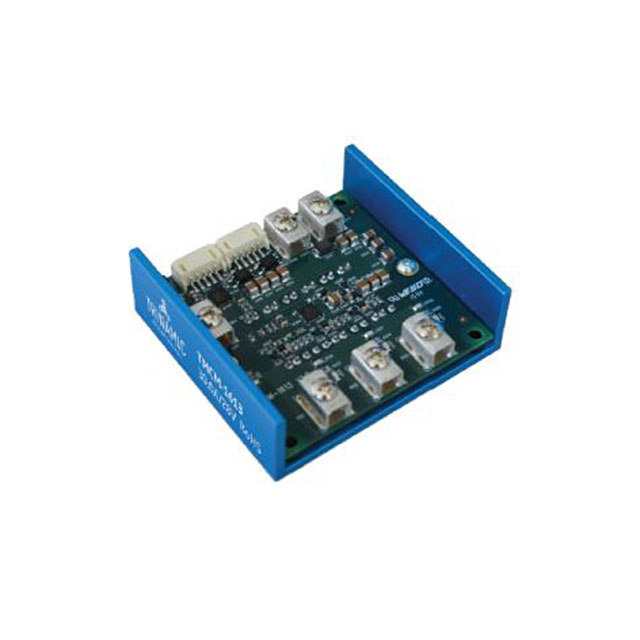

TMCM-1613
ObsoleteAnalog Devices Inc./Maxim Integrated
BOARD CONTROL BLDC MOTOR 500W, 2
TMCM-1613
ObsoleteAnalog Devices Inc./Maxim Integrated
BOARD CONTROL BLDC MOTOR 500W, 2
Description
General part information
TMCM-1613
Brushless 24VDC Supply 30A 24V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1613 |
|---|---|
| Control / Drive Type | Brushless |
| Current - Output | 30 A |
| Interface | SCI / UART, Step / Direction |
| Motor Type | Brushless DC (BLDC), Brushless (BLDC) |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Type | Board |
| Voltage - Load | 24 VAC |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
