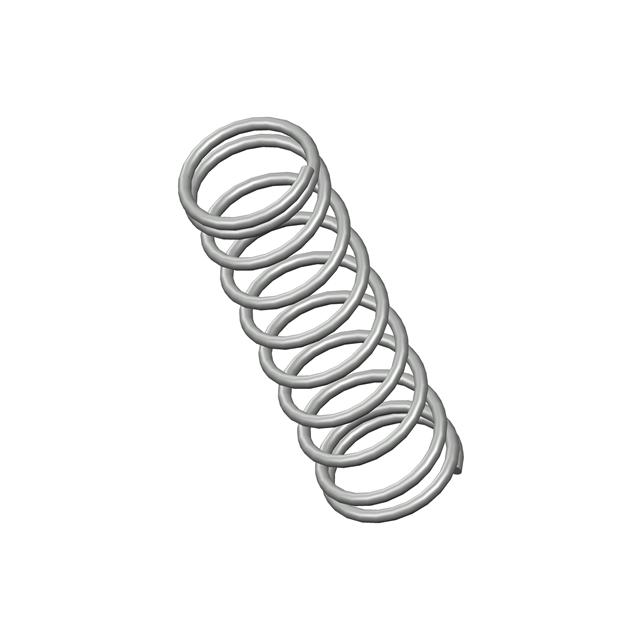

JJ-43CS
ActiveCentury Spring Corp
COMP O= .296,L= 1.00,W= .027
JJ-43CS
ActiveCentury Spring Corp
COMP O= .296,L= 1.00,W= .027
Description
General part information
JJ-43CS
COMP O= .296,L= 1.00,W= .027
Technical Specifications
Parameters and characteristics for this part
| Specification | JJ-43CS |
|---|---|
| Diameter - Inside | 0.242 in |
| Diameter - Outside | 0.296 in |
| End Style | Closed |
| Finish | None |
| Free Length | 1 in |
| Material | Music Wire |
| Rate (lbs/in) | 4.9 lbs/in |
| Type | Compression |
| Wire Diameter | 0.027 in |
