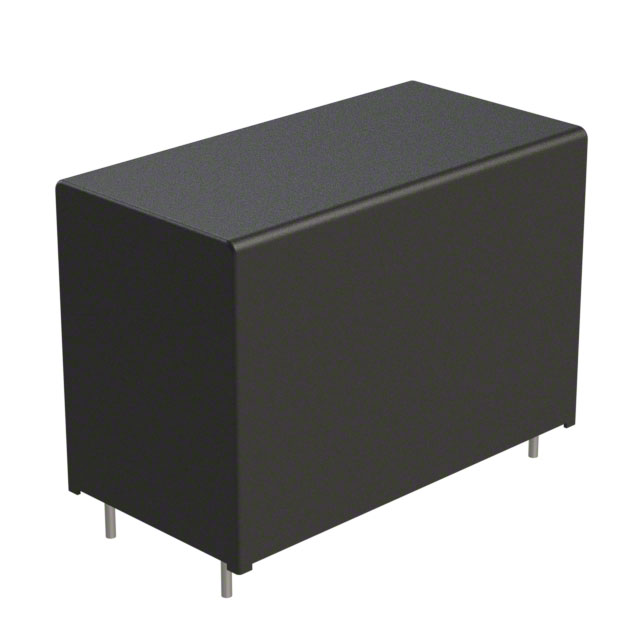

Specification	MKP1848H62212JY5

Applications	DC Filtering, DC Link
Capacitance	22 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.8 mOhm
Features	Low ESR, 85C/85% Humidity; Low ESR, 85C/85% Humidity, Low ESL
Height - Seated (Max)	2.008 in
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	4 Leads
Package Name	Radial
Ratings	AEC-Q200
Size / Dimension Length	2.264 in
Size / Dimension Width	1.378 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	1200 V
