GPVBSF.25.8.A
NRNDTaoglas Limited
GPS L1/L5 STACKED PATCH
GPVBSF.25.8.A
NRNDTaoglas Limited
GPS L1/L5 STACKED PATCH
Description
General part information
GPVBSF.25.8.A

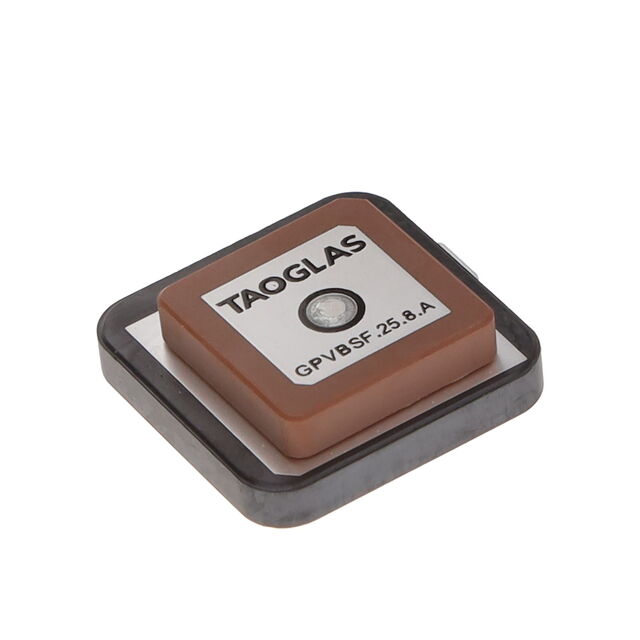

RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS Ceramic Patch Pin Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | GPVBSF.25.8.A |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, SBAS, QZSS, GNSS, GPS, BEIDOU, Galileo, IRNSS |
| Frequency (Center/Band) | 1.561GHz, 1.176GHz, 1.575GHz |
| Frequency (Center/Band) - 1 | 1.176 GHz |
| Frequency (Center/Band) - 2 | 1.561 GHz |
| Frequency (Center/Band) - 3 | 1.575 GHz |
| Frequency Group | Wide Band |
| Gain | 3.1dBi, 3.4dBi, 2.5dBi |
| Gain | 2.5 dBi, 3.1 dBi, 3.4 dBi |
| Height (Max) | 0.32 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Termination | Pin |
| VSWR | 2 |
