T1329320132-000
ActiveTE Connectivity AMP Connectors
H32A-TG-M32
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1329320132-000
ActiveTE Connectivity AMP Connectors
H32A-TG-M32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1329320132-000 | T132 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray, Black |
| Housing Finish | Powder Coated | Powder Coated, Nickel |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast, Polycarbonate (PC), Zinc, Die Cast, Zinc Alloy, Die Cast, Polyamide (PA), Nylon |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (1) on Base Bottom, Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H32A | H16B, H16A, H48B, H3A, H32B, H6B, H32A, H24B, H10A, H8A, H10B |
| Size / Dimension [x] | 82 mm | 26.8 - 132 mm |
| Size / Dimension [x] | 3.228 in | 1.055 - 5.197 " |
| Size / Dimension [y] | 56 mm | 24.5 - 88 mm |
| Size / Dimension [y] | 2.205 in | 0.965 - 3.465 in |
| Size / Dimension [z] | 76 mm | 54 - 106.5 mm |
| Size / Dimension [z] | 2.992 in | 2.126 - 4.193 " |
| Style | Top Entry | Top Entry, Dual, Side and Top Entry |
| Thread Size | M32 | M25, PG16, PG42, PG11, M20, PG21, M32, M50, M63 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.23 | |
| 16 | $ 9.25 | |||
| 32 | $ 9.00 | |||
| 56 | $ 8.66 | |||
| 104 | $ 8.61 | |||
T132 Series
H16B-TG-RO-M25
| Part | Housing Color | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Style | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Size | Housing Finish | Ingress Protection | Connector Type | Thread Size | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1320160125-000 | Gray | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H16B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M25 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329160116-000 | Gray | 58.2 mm | 79.2 mm | 1.169 in | 2.291 " | 29.7 mm | 3.118 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H16A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG16 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320480142-000 | Gray | 106.5 mm | 132 mm | 3.465 in | 4.193 " | 88 mm | 5.197 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H48B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG42 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329031111-000 | 55 mm | 26.8 mm | 1.055 " | 2.165 in | 26.8 mm | 1.055 " | Top Entry | Polycarbonate (PC) | 125 °C | -40 °C | H3A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG11 | Locking Clip (1) on Base Bottom | |
TE Connectivity AMP Connectors T1329035120-100 | 55.8 mm | 26.8 mm | 1.055 " | 2.197 " | 26.8 mm | 1.055 " | Top Entry | Zinc, Die Cast | 125 °C | -40 °C | H3A | Nickel | IP65 - Dust Tight, Water Resistant | Hood | M20 | Locking Clip (1) on Base Bottom | |
TE Connectivity AMP Connectors T1320160121-000 | Gray | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H16B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG21 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320320142-000 | Gray | 76 mm | 94 mm | 3.248 in | 2.992 in | 82.5 mm | 3.701 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H32B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG42 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320060132-000 | Gray | 60 mm | 60 mm | 1.693 in | 2.362 " | 43 mm | 2.362 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H6B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M32 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329320121-000 | Gray | 76 mm | 82 mm | 2.205 in | 2.992 in | 56 mm | 3.228 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H32A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG21 | Locking Clip (2) on Base Bottom |
TE Connectivity AMP Connectors T1320320125-000 | Gray | 76 mm | 94 mm | 3.248 in | 2.992 in | 82.5 mm | 3.701 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H32B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M25 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320480150-000 | Gray | 106.5 mm | 132 mm | 3.465 in | 4.193 " | 88 mm | 5.197 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H48B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M50 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320480163-000 | Gray | 106.5 mm | 132 mm | 3.465 in | 4.193 " | 88 mm | 5.197 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H48B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M63 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329030111-000 | Gray | 55.8 mm | 26.8 mm | 1.055 " | 2.197 " | 26.8 mm | 1.055 " | Top Entry | Zinc Alloy, Die Cast | 125 °C | -40 °C | H3A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG11 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320240225-000 | Gray | 60 mm | 120 mm | 1.693 in | 2.362 " | 43 mm | 4.724 " | Dual, Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H24B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M25 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329100116-000 | Gray | 58.2 mm | 63.2 mm | 1.169 in | 2.291 " | 29.7 mm | 2.488 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H10A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG16 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320480132-000 | Gray | 106.5 mm | 132 mm | 3.465 in | 4.193 " | 88 mm | 5.197 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H48B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M32 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329031120-000 | 55 mm | 26.8 mm | 0.965 in | 2.165 in | 24.5 mm | 1.055 " | Top Entry | Polycarbonate (PC) | 125 °C | -40 °C | H3A | IP65 - Dust Tight, Water Resistant | Hood | M20 | Locking Clip (1) on Base Bottom | ||
TE Connectivity AMP Connectors T1320320225-000 | Gray | 76 mm | 94 mm | 3.248 in | 2.992 in | 82.5 mm | 3.701 " | Side and Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H32B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M25 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329035111-100 | 55.8 mm | 26.8 mm | 1.055 " | 2.197 " | 26.8 mm | 1.055 " | Top Entry | Zinc, Die Cast | 125 °C | -40 °C | H3A | Nickel | IP65 - Dust Tight, Water Resistant | Hood | PG11 | Locking Clip (1) on Base Bottom | |
TE Connectivity AMP Connectors T1329081125-000 | Black | 54 mm | 48.2 mm | 1.142 in | 2.126 in | 29 mm | 1.898 in | Top Entry | Polyamide (PA), Nylon | H8A | IP65 - Dust Tight, Water Resistant | Hood | M25 | Locking Clip (1) on Base Bottom | |||
TE Connectivity AMP Connectors T1329036120-000 | Gray | 55.8 mm | 26.8 mm | 1.055 " | 2.197 " | 26.8 mm | 1.055 " | Top Entry | Zinc Alloy, Die Cast | 125 °C | -40 °C | H3A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M20 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329100120-000 | Gray | 58.2 mm | 63.2 mm | 1.169 in | 2.291 " | 29.7 mm | 2.488 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H10A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M20 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329160120-000 | Gray | 58.2 mm | 79.2 mm | 1.169 in | 2.291 " | 29.7 mm | 3.118 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H16A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M20 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320060121-000 | Gray | 60 mm | 60 mm | 1.693 in | 2.362 " | 43 mm | 2.362 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H6B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG21 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329320132-000 | Gray | 76 mm | 82 mm | 2.205 in | 2.992 in | 56 mm | 3.228 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H32A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M32 | Locking Clip (2) on Base Bottom |
TE Connectivity AMP Connectors T1329100121-000 | Gray | 58.2 mm | 63.2 mm | 1.169 in | 2.291 " | 29.7 mm | 2.488 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H10A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG21 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329100116-100 | Gray | 58.2 mm | 63.2 mm | 1.169 in | 2.291 " | 29.7 mm | 2.488 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H10A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | PG16 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320100120-000 | Gray | 60 mm | 73 mm | 1.693 in | 2.362 " | 43 mm | 2.874 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H10B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M20 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1320240132-000 | Gray | 60 mm | 120 mm | 1.693 in | 2.362 " | 43 mm | 4.724 " | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H24B | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | M32 | Locking Clip (1) on Base Bottom |
TE Connectivity AMP Connectors T1329320140-000 | Gray | 76 mm | 82 mm | 2.205 in | 2.992 in | 56 mm | 3.228 in | Top Entry | Aluminum Alloy, Die Cast | 125 °C | -40 °C | H32A | Powder Coated | IP65 - Dust Tight, Water Resistant | Hood | Locking Clip (2) on Base Bottom |
Description
General part information
T132 Series

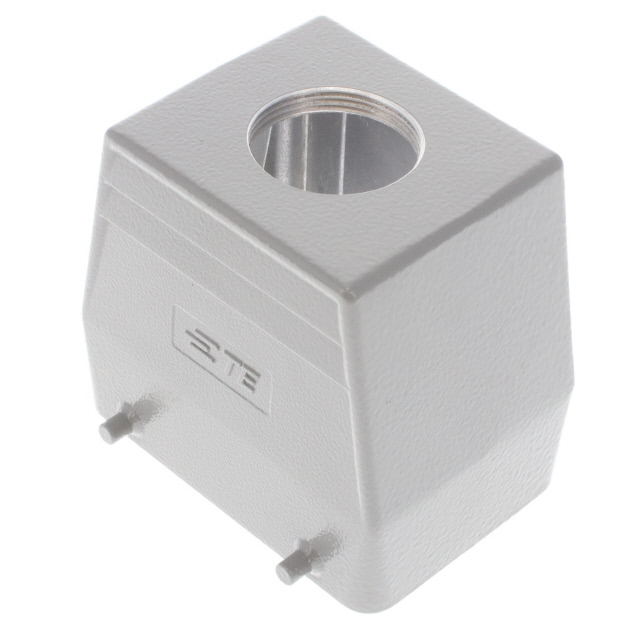

Hood Connector Top Entry M32 H32A IP65 - Dust Tight, Water Resistant
