Description
General part information

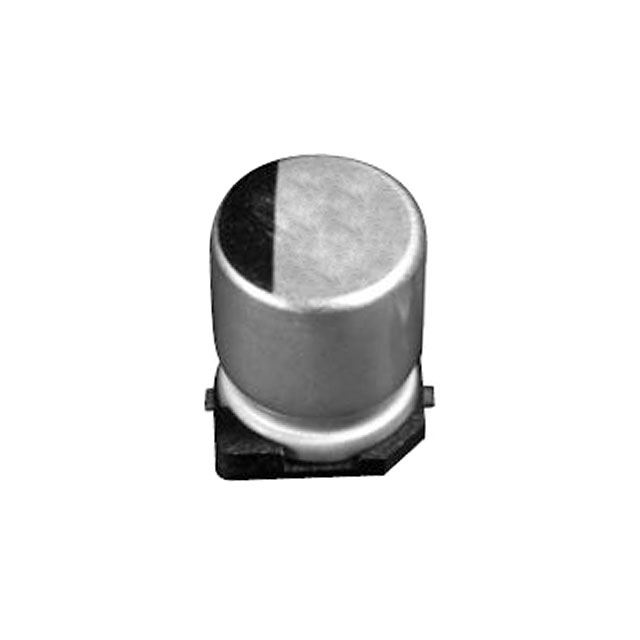

35JEV33M6.3X5.5
33 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 35JEV33M6.3X5.5 |
|---|---|
| Applications | High Temperature Reflow |
| Capacitance | 33 µF |
| Height - Seated (Max) | 0.217 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 87 mA, 58 mA |
| Size / Dimension Diameter | 0.248 in |
| Surface Mount Land Length | 0.26 in |
| Surface Mount Land Width | 0.26 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
