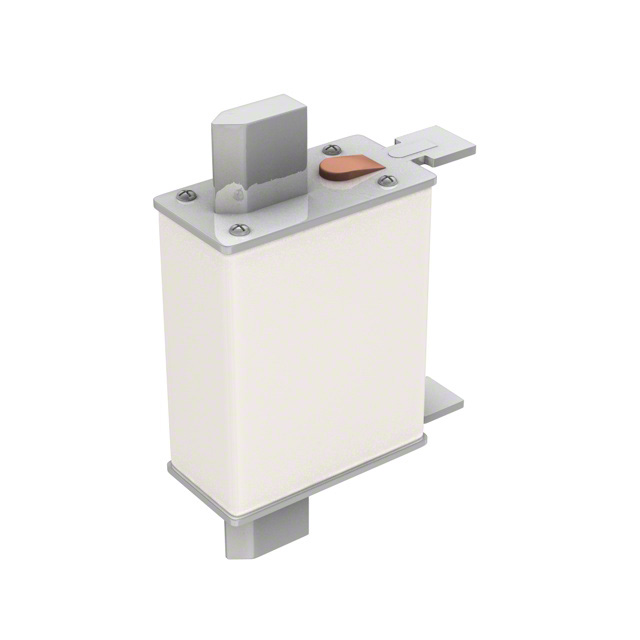

170M1565D
ActiveEaton - Electronics Division
FUSE 63A 690V GR DIN 000 HSDNH
170M1565D
ActiveEaton - Electronics Division
FUSE 63A 690V GR DIN 000 HSDNH
Description
General part information
170M1565D
63A 690 VAC Fuse Square Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | 170M1565D |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity | 200 kA |
| Current Rating | 63 A |
| Features | Indicating |
| Fuse Type | Square |
| Melting I²t | 215 |
| Mounting Type | Requires Holder |
| Package / Case | Rectangular, Blade |
| Size / Dimension Height | 2.047 in |
| Size / Dimension Length | 2.087 in |
| Size / Dimension Width | 0.807 in |
| Voltage Rating - AC | 690 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
