GFTPX-16
ActiveCurtis Industries

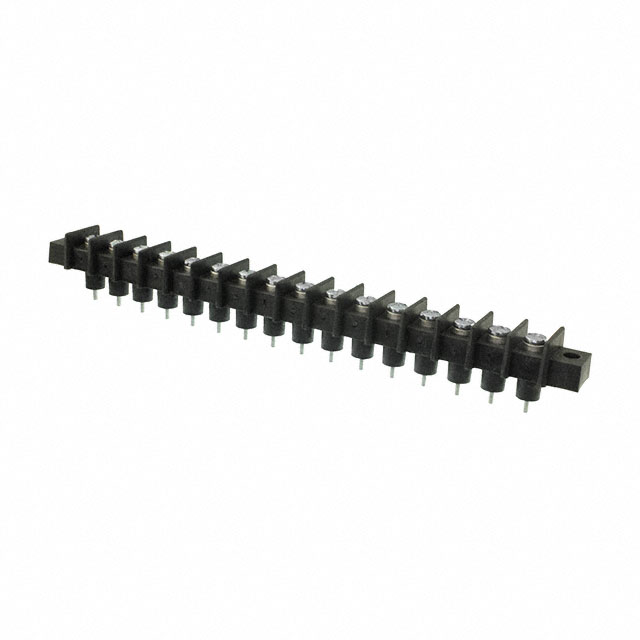

CONN BARRIER STRP 16CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GFTPX-16
ActiveCurtis Industries
CONN BARRIER STRP 16CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GFTPX-16 | GFTPX Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin, Insulated | PC Pin, Insulated |
| Color | Black | Black |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 16 | 1 - 24 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 16 | 2 - 21 |
| Number of Wire Entries | - | 1 - 23 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
GFTPX Series
CONN BARRIER STRIP 5CIRC 0.438"
| Part | Material - Insulation | Number of Circuits | Operating Temperature | Features | Terminal Block Type | Number of Wire Entries | Barrier Type | Wire Gauge [Min] | Wire Gauge [Max] | Material Flammability Rating | Top Termination | Number of Rows | Pitch [x] | Pitch [x] | Bottom Termination | Mounting Type | Color | Current Rating (Amps) | Terminal Screw Material | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries GFTPX-5 | Polyphenylene Oxide (PPO) | 5 | 110 °C | Flange | Barrier Block | 5 | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | ||
Curtis Industries GFTPX-2 | Polyphenylene Oxide (PPO) | 2 | 110 °C | Flange | Barrier Block | 2 | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | ||
Curtis Industries GFTPX-6 | Polyphenylene Oxide (PPO) | 6 | 110 °C | Flange | Barrier Block | 6 | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | ||
Curtis Industries GFTPX-24 | Polyphenylene Oxide (PPO) | 24 | 110 °C | Flange | Barrier Block | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | |||
Curtis Industries GFTPX-13 | Polyphenylene Oxide (PPO) | 13 | 110 °C | Flange | Barrier Block | 13 | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | ||
Curtis Industries GFTPX-23 | Polyphenylene Oxide (PPO) | 23 | 110 °C | Flange | Barrier Block | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | 23 | ||
Curtis Industries GFTPX-20 | Polyphenylene Oxide (PPO) | 20 | 110 °C | Flange | Barrier Block | 20 | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | ||
Curtis Industries GFTPX-21 | Polyphenylene Oxide (PPO) | 21 | 110 °C | Flange | Barrier Block | 21 | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | ||
Curtis Industries GFTPX-16 | Polyphenylene Oxide (PPO) | 16 | 110 °C | Flange | Barrier Block | 16 | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | 11.12 mm | 0.438 in | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | ||
Curtis Industries GFTPX-1 | Polyphenylene Oxide (PPO) | 1 | 110 °C | Flange | Barrier Block | 2 Wall (Dual) | 12 AWG | 22 AWG | UL94 V-0 | Screws | 1 | PC Pin, Insulated | Chassis, Panel | Black | 20 A | Steel | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.06 | |
Description
General part information
GFTPX Series
16 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
Documents
Technical documentation and resources
