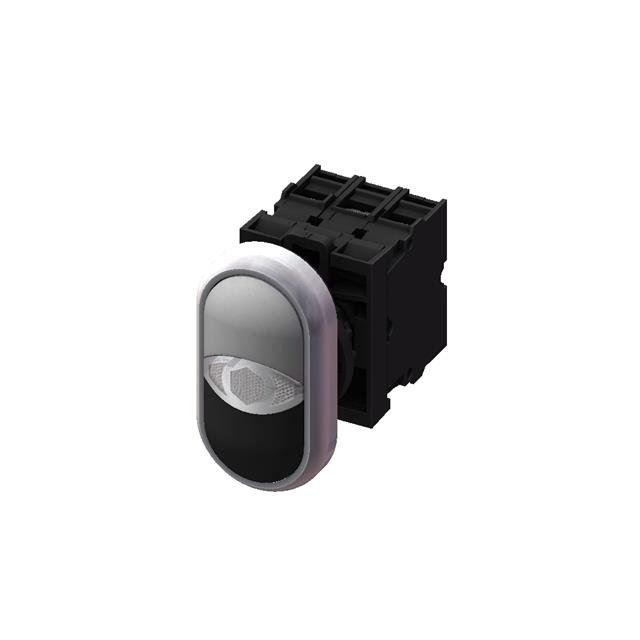

M22DP-SF11-E30-WB-<START,STOP>
Pushbutton Switch SPST Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | M22DP-SF11-E30-WB-<START,STOP> |
|---|---|
| Actuator Marking | START, STOP (Alternating) |
| Actuator Type | Dual, Round, Button |
| Circuit | SPST |
| Color | White |
| Color - Actuator/Cap | White, Black |
| Current Rating | 6 A, 3 A |
| Illumination Type | LED |
| Illumination Voltage (Nominal) (Maximum) | 30 VAC/DC |
| Illumination Voltage (Nominal) (Minimum) | 12 VAC/DC |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 230 V |
| Voltage Rating - DC | 24 V |
