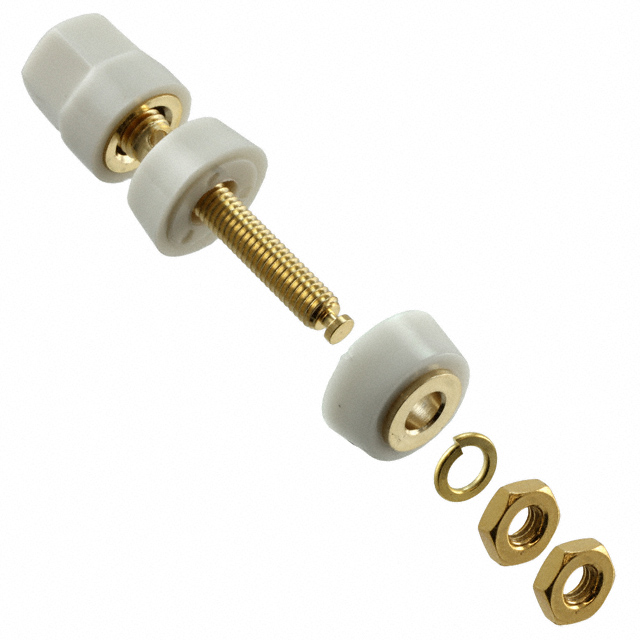

7023
ActiveKeystone Electronics
CONN BIND POST HEX WHITE
7023
ActiveKeystone Electronics
CONN BIND POST HEX WHITE
Description
General part information
7023
Binding Post Connector Standard Hex White Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | 7023 |
|---|---|
| Color | White |
| Cross Hole Diameter | 0.093 in |
| Current Rating | 30 A |
| Head Size (L) | 0.625 in |
| Head Size (OD) | 0.48 in |
| Head Style | Hex |
| Material - Body | Brass |
| Material - Insulation | Polyamide, PA, Nylon |
| Nut Material | Brass |
| Nut Plating | Gold |
| Plating - Body | Gold |
| Termination | Threaded and Turret |
| Termination Thread | 10-32 |
| Type | Standard |
| Voltage Rating | 1000 V |
