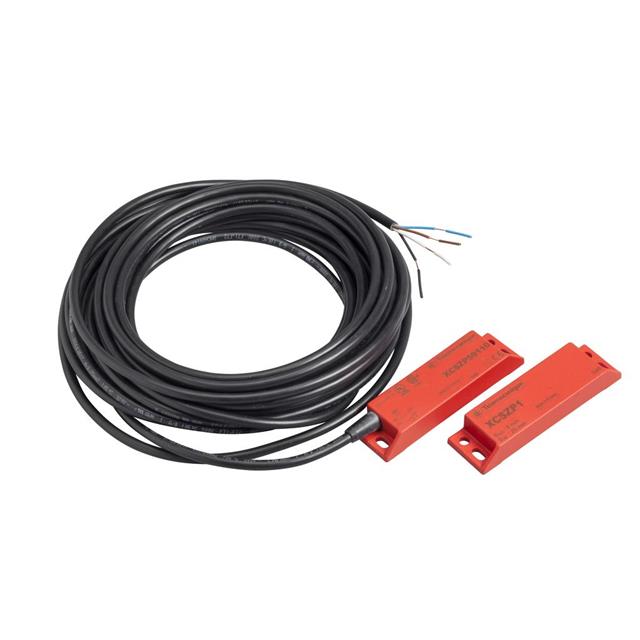

XCSDMP7015
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK 24VDC 100A T-XCS
XCSDMP7015
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK 24VDC 100A T-XCS
Description
General part information
XCSDMP7015
SAFETY INTERLOCK 24VDC 100A T-XCS
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSDMP7015 |
|---|---|
| Actuator Type | Non-Contact |
| Approval Agency | UL, CSA |
| Circuit | 3PST-2NC/1NO |
| Current Rating | 100 mA |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Must Operate (Length) | 8 mm |
| Must Release | 20 mm |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Cable Leads |
| Type | Magnetic |
| Voltage Rating | 24 V |
