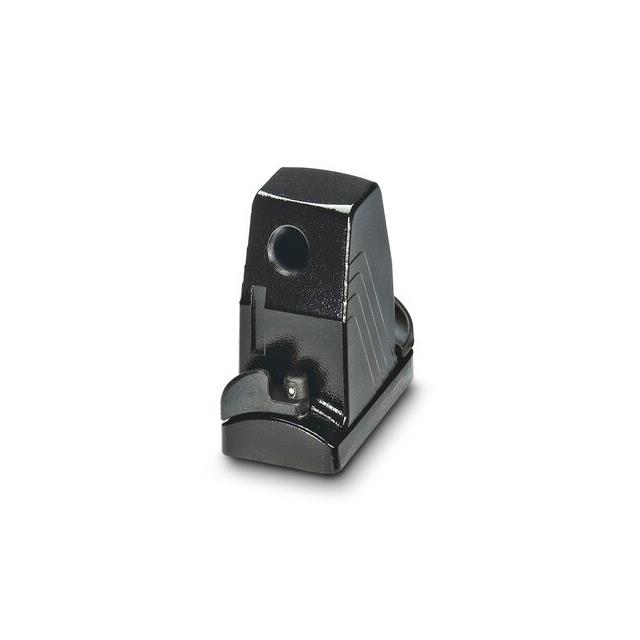

Specification	1604379

Connector Type	Hood
Features	Salt Water Resistant
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Lock Location	Bayonet Lock on Hood
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-40 °C
Size	B10
Size / Dimension Height	3.937 in
Size / Dimension Length	4.134 in
Size / Dimension Width	2.244 in
Style	Side Entry
Thread Size	M32
