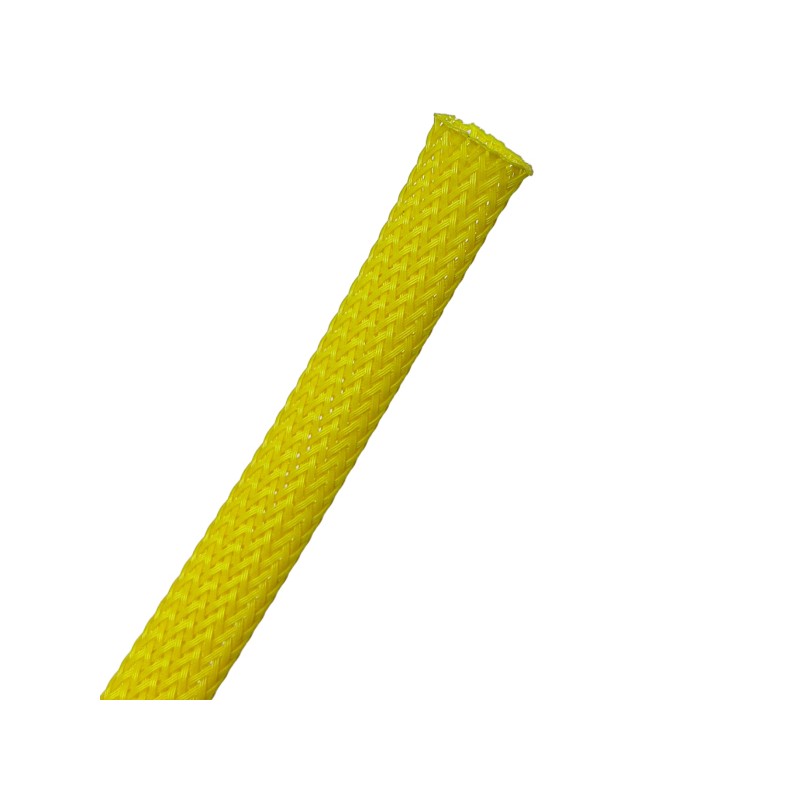

FW013-100-YW
ActiveKable Kontrol
EXP PET SLEEVE 1/8" X100' YW
FW013-100-YW
ActiveKable Kontrol
EXP PET SLEEVE 1/8" X100' YW
Description
General part information
FW013-100-YW
EXP PET SLEEVE 1/8" X100' YW
Technical Specifications
Parameters and characteristics for this part
| Specification | FW013-100-YW |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Yellow |
| Diameter - Inside, Expanded | 0.25 in |
| Diameter - Inside, Non-Expanded | 0.125 in |
| Features | Solvent Resistant, Chemical Resistant, Clean Cut |
| Heat Protection | Flame Retardant |
| Length | 100 ft |
| Liquid Protection | Gasoline Resistant |
| Material | Halogen Free, Polyethylene Terephthalate (PET) |
| Material Flammability Rating | UL VW-1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -70 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
