SM62C1-BKE-T-040-632-000
ActiveTE Connectivity AMP Connectors

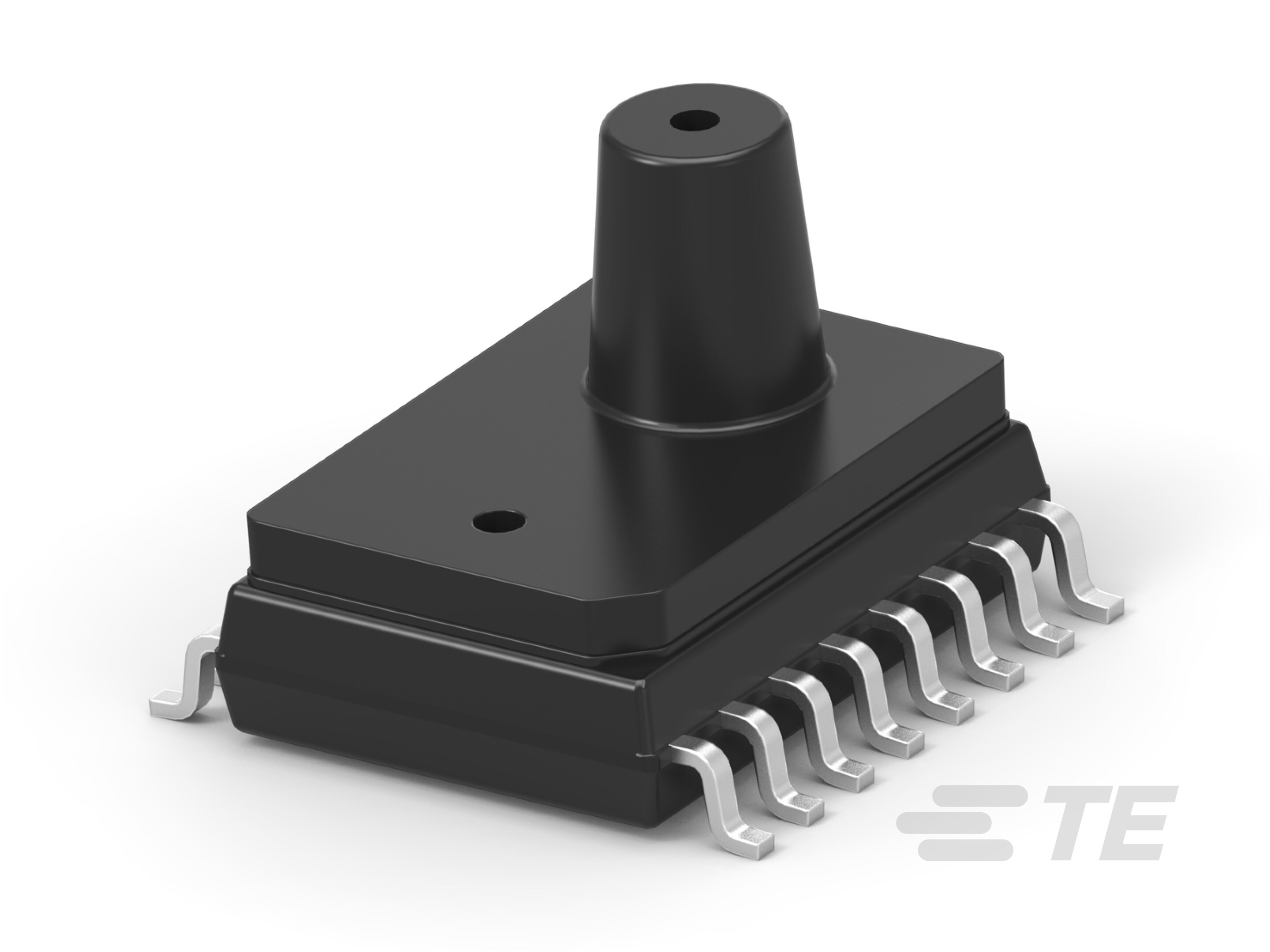

SM17 SO16 MANIFOLD PORT, 0 TO 40CM H20
SM62C1-BKE-T-040-632-000
ActiveTE Connectivity AMP Connectors
SM17 SO16 MANIFOLD PORT, 0 TO 40CM H20
Description
General part information
SM62C1-BKE-T-040-632-000
Analog Pressure Sensor Modules / Digital Pressure Sensor, Gauge, 15.75 inH2O, .57 psi, 10 - 90% Vdc, ±1% F.S Pressure Accuracy, SMI 6000
Technical Specifications
Parameters and characteristics for this part
| Specification | SM62C1-BKE-T-040-632-000 |
|---|---|
| Accuracy | 1 % |
| Applications | Board Mount |
| Features | Temperature Compensated, Amplified Output |
| Mounting Type | Surface Mount |
| Operating Pressure | 60 PSI |
| Output Type | Analog Voltage |
| Package Features | Top Port |
| Package Length | 0.295 in |
| Package Name | 16-SOIC |
| Package Width | 7.5 mm |
| Pressure Type | Gauge |
| Termination Style | Gull Wing |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
