XS512B1NAM12
ActiveSCHNEIDER ELECTRIC

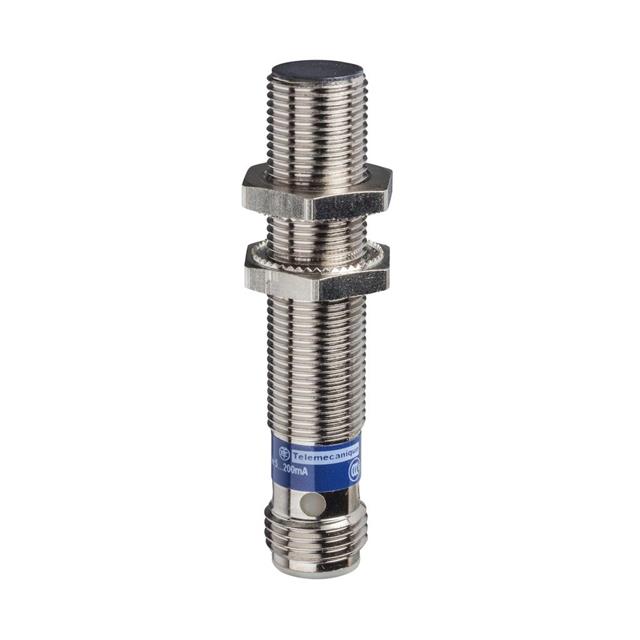

INDUCTIVE PROXIMITY SENSOR, OSISENSE XS 512 SERIES, 2.5 MM, NPN, M12, M12 CONNECTOR, 12-24V
XS512B1NAM12
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS 512 SERIES, 2.5 MM, NPN, M12, M12 CONNECTOR, 12-24V
Description
General part information
XS512B1NAM12
Inductive Proximity Sensor 0.079" (2mm) IP67, IP69K Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS512B1NAM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP69K, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
