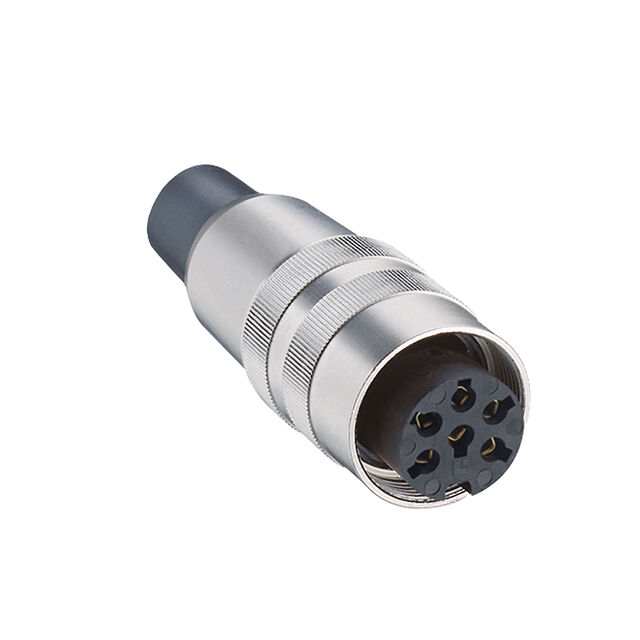

KV 71-8
ActiveLumberg Inc
CIRCULAR CONNECTOR, IP40, KV SERIES, CABLE MOUNT PLUG, 7 CONTACTS, SOLDER SOCKET, THREADED
KV 71-8
ActiveLumberg Inc
CIRCULAR CONNECTOR, IP40, KV SERIES, CABLE MOUNT PLUG, 7 CONTACTS, SOLDER SOCKET, THREADED
Description
General part information
KV 71-8
8 Position Circular Connector Plug, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | KV 71-8 |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Silver, Gold |
| Fastening Type | Threaded |
| Features | Strain Relief |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M16 |
| Termination | Solder |
