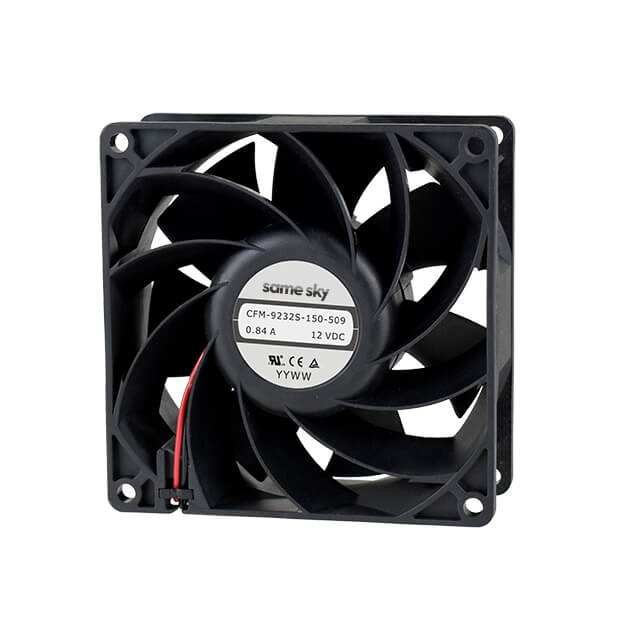

CFM-9232S-150-509-20
ActiveSame Sky (Formerly CUI Devices)
FAN AXIAL 92.2X32MM 12VDC WIRE
CFM-9232S-150-509-20
ActiveSame Sky (Formerly CUI Devices)
FAN AXIAL 92.2X32MM 12VDC WIRE
Description
General part information
CFM-9232S-150-509-20
Fan Tubeaxial 12VDC Square - 92.2mm L x 92.2mm H Sleeve 102.8 CFM (2.91m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM-9232S-150-509-20 |
|---|---|
| Air Flow | 102.8 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | Sleeve |
| Current Rating | 910 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime | 30000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 51 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 10.9 W |
| RPM | 5000 RPM |
| Size / Dimension Height | 92.2 mm |
| Size / Dimension Length | 92.2 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.62 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 13.2 VDC |
| Voltage Range (Min) | 10.8 VDC |
| Width | 32 mm |
