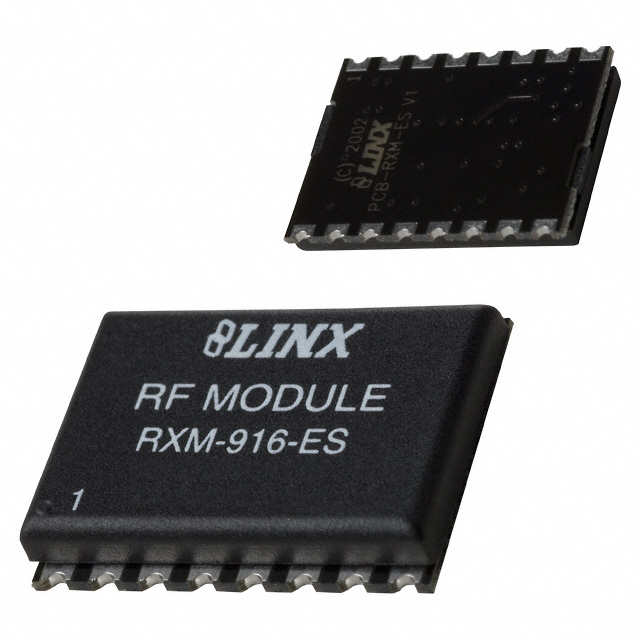

RXM-916-ES
ObsoleteTE Connectivity AMP Connectors
RF RECEIVER FM/FSK 916MHZ MODULE
RXM-916-ES
ObsoleteTE Connectivity AMP Connectors
RF RECEIVER FM/FSK 916MHZ MODULE
Description
General part information
RXM-916-ES
- RF Receiver FM, FSK 916MHz -102dBm 56kbps PCB, Surface Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | RXM-916-ES |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Current - Receiving | 6.5 mA |
| Data Interface | PCB, Surface Mount |
| Data Rate (Max) | 56 kbps |
| Frequency | 916 MHz |
| Modulation or Protocol | FM, FSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 16-SMD |
| Package Name | Module |
| Sensitivity | -102 dBm |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
