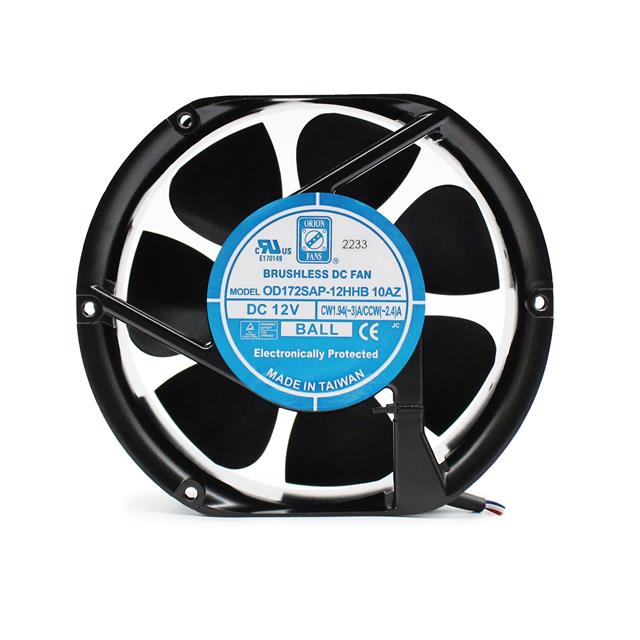

Specification	OD172SAP-12HHB10AZX

Air Flow	310 CFM
Approval Agency	cURus, UR, CE, TUV
Bearing Type	Ball
Current Rating	1.94 A
Fan Type	Tubeaxial
Features	Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	PBT, Polybutylene Terephthalate
Material - Frame	Aluminum
Noise	60 dB
Operating Temperature (Max)	149 °F
Operating Temperature (Min)	5 °F
Power (Watts)	24 W
RPM	3950 RPM
Size / Dimension Height	152 mm
Size / Dimension Length	172 mm
Size / Dimension Shape	Rectangular/Rounded
Static Pressure	1.28 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Width	51 mm

OD172SAP Series

Part	Ingress Protection IP Rating	Ingress Protection Description	Approval Agency	Fan Type	Weight	Termination Leads Count	Termination Type	Termination	Bearing Type	Static Pressure	RPM	Features	Noise	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Width	Power (Watts)	Voltage - Rated	Air Flow	Lifetime	Current Rating	Material - Blade	Material - Frame	Termination Count	Voltage Range (Min)	Voltage Range (Max)
ORION FANS OD172SAP-48MBIP68	IP68	Dust Tight Waterproof	cURus TUV	Tubeaxial	1.8 lbs	2 leads	Wire Leads	2 Wire Leads	Ball	0.51 in H2O	2500 RPM	Auto Restart	42 dB	5 °F	149 °F	150 mm	Rectangular/Rounded	172 mm	51 mm	14.5 W	48 VDC	180 CFM	90000 Hrs	0.3 A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)
ORION FANS OD172SAP-24HTB			cURus TUV	Tubeaxial				2 Terminals	Ball	0.79 in H2O	3300 RPM	Auto Restart	52 dB	-4 °F	167 °F	150 mm	Rectangular/Rounded	172 mm	2 in		24 VAC	235 CFM	40000 Hrs	970 mA	Fiberglass Reinforced PBT Polybutylene Terephthalate	Aluminum	2	15 VDC	28 V
ORION FANS OD172SAPL-48HHBXC				Tubeaxial		2 leads	Wire Leads	2 Wire Leads	Ball			Auto Restart				150 mm	Rectangular/Rounded	172 mm	38.5 mm		48 VDC				PBT Polybutylene Terephthalate	Aluminum
ORION FANS OD172SAP-12HBIP68	IP68	Dust Tight Waterproof	cURus TUV	Tubeaxial	1.8 lbs	2 leads	Wire Leads	2 Wire Leads	Ball	0.75 in H2O	3200 RPM	Auto Restart	51 dB	5 °F	149 °F	150 mm	Rectangular/Rounded	172 mm	51 mm	23 W	12 VAC	230 CFM	90000 Hrs	1.9 A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)
ORION FANS OD172SAP-24HHB01A			cURus TUV	Tubeaxial		3	Wire Leads	3 Wire Leads	Ball	0.98 in H2O	3900 RPM	Auto Restart Speed Sensor (Tach)	57 dB	-4 °F	167 °F	150 mm	Rectangular/Rounded	172 mm	51 mm		24 VAC	300 CFM	40000 Hrs	2.1 A	PBT Polybutylene Terephthalate	Aluminum		15 VDC	28 V
ORION FANS OD172SAP-12HBXC			cURus TUV	Tubeaxial		2 leads	Wire Leads	2 Wire Leads	Ball	1.14 in H2O	3900 RPM	Auto Restart	62 dB	14 °F	158 °F	150 mm	Rectangular/Rounded	172 mm	2 in		12 VAC	277 CFM	65000 Hrs	3.5 A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Aluminum		9 V	14 V
ORION FANS OD172SAP-24HBXCIP68	IP68	Dust Tight Waterproof	CE cURus TUV UR	Tubeaxial	1.3 lbs	2 leads	Wire Leads	2 Wire Leads	Ball	1.06 in H2O	4400 RPM	Auto Restart	63.5 dB	-4 °F	149 °F	152 mm	Rectangular/Rounded	172 mm	51.6 mm	50.4 W	24 VAC	323 CFM	90000 Hrs	2.1 A	PBT Polybutylene Terephthalate	Aluminum
ORION FANS OD172SAP-12HHB			cURus TUV	Tubeaxial		2 leads	Wire Leads	2 Wire Leads	Ball	0.93 in H2O	3800 RPM	Auto Restart	56 dB	-4 °F	167 °F	150 mm	Rectangular/Rounded	172 mm	51 mm		12 VAC	290 CFM	40000 Hrs	2.9 A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Aluminum		8 V	14 V
ORION FANS OD172SAP-48HBXC			cURus TUV	Tubeaxial		2 leads	Wire Leads	2 Wire Leads	Ball	1.6 in H2O	4600 RPM	Auto Restart	67 dB	14 °F	158 °F	150 mm	Rectangular/Rounded	172 mm	2 in		48 VDC	307 CFM	65000 Hrs	1.2 A	Fiberglass Reinforced PBT Polybutylene Terephthalate	Aluminum		24 VDC	55 VDC
ORION FANS OD172SAP-48HBIP68	IP68	Dust Tight Waterproof	cURus TUV	Tubeaxial	1.8 lbs	2 leads	Wire Leads	2 Wire Leads	Ball	0.79 in H2O	3300 RPM	Auto Restart	52 dB	5 °F	149 °F	150 mm	Rectangular/Rounded	172 mm	51 mm	23.5 W	48 VDC	235 CFM	90000 Hrs	480 mA	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)
