HEADERS & WIRE HOUSINGS NEW GI CONN 2.5 HDR ASSY 8P NC D1.25
8-2232501-1
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS NEW GI CONN 2.5 HDR ASSY 8P NC D1.25
Description
General part information
GRACE INERTIA 2.5 Series

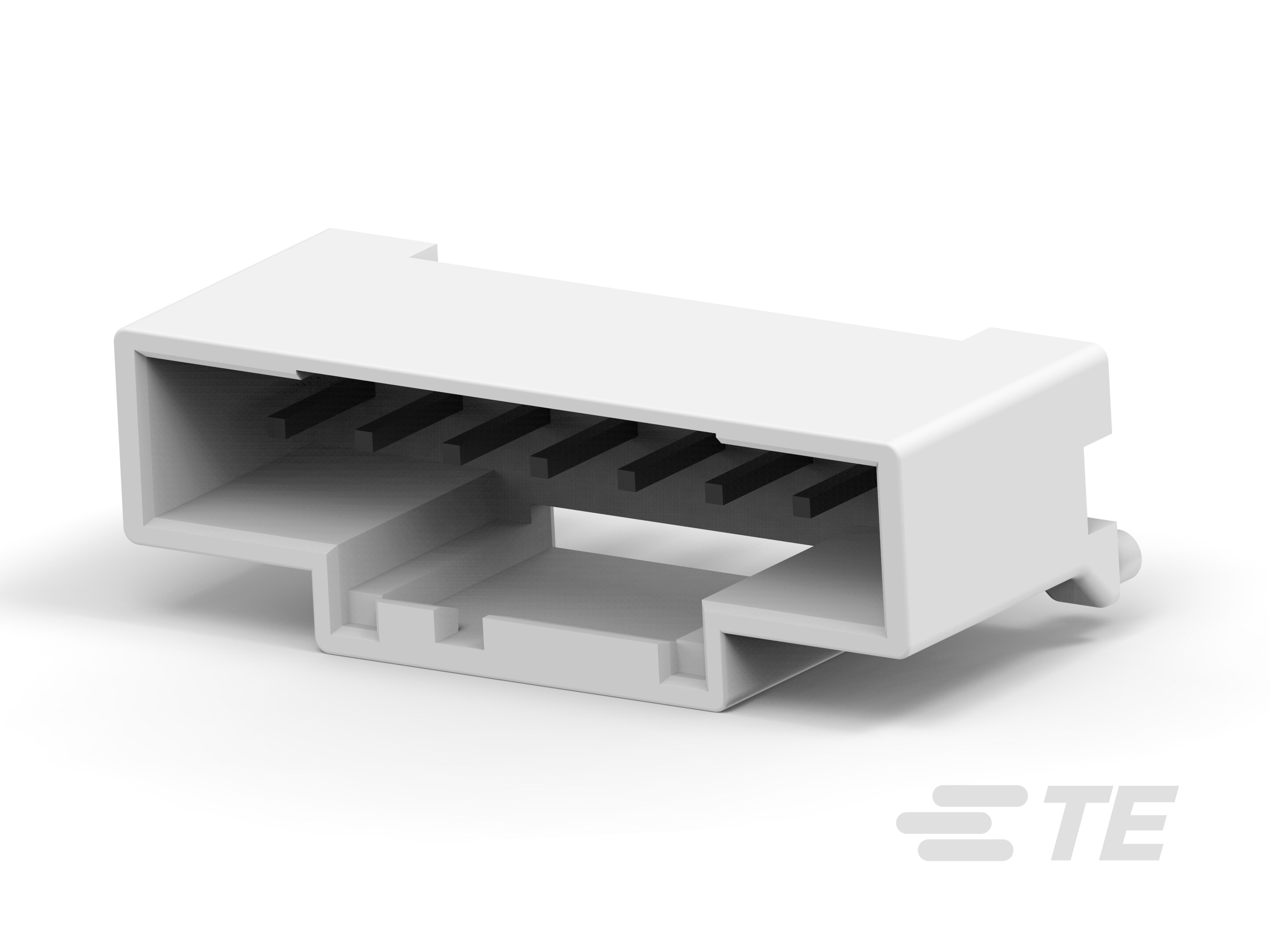

PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, GRACE INERTIA 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-2232501-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 0.346 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Press-Fit, Solder |
| Voltage Rating | 50 V |
| Voltage Rating (Type) | DC |
