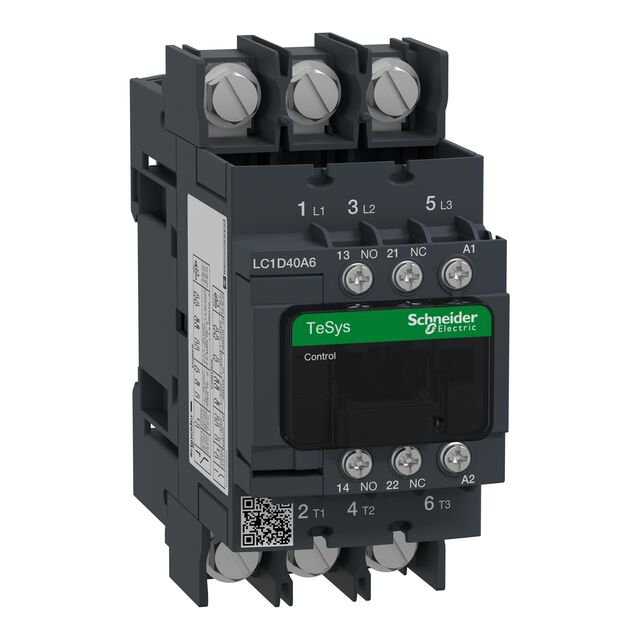

LC1D40A6P7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR40A18,5KWAC3 23
LC1D40A6P7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR40A18,5KWAC3 23
Description
General part information
LC1D40A6P7
TESYS 3P EVLK CTR40A18,5KWAC3 23
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D40A6P7 |
|---|---|
| Coil Voltage | 230 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 40 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 195.5 VDC |
| Must Release Voltage | 69 VAC |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Box Lug |
