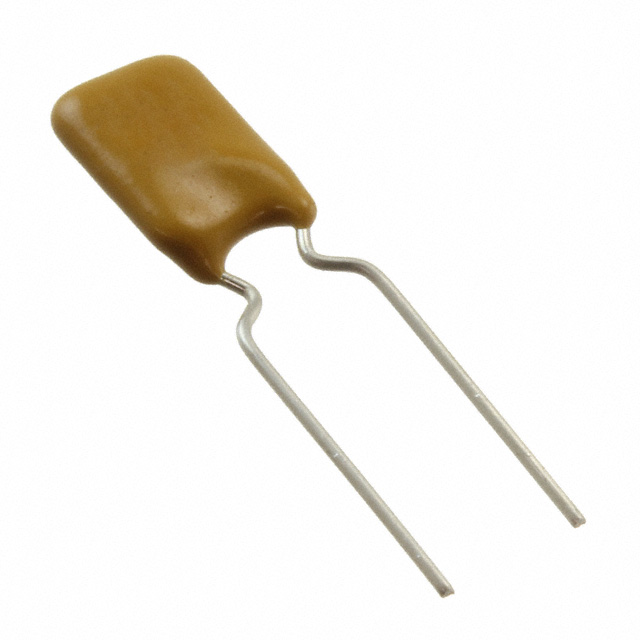

0ZRP0050FF2E
ActiveBEL MAGNETIC SOLUTIONS
PTC RESET FUSE 60V 500MA RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0ZRP0050FF2E
ActiveBEL MAGNETIC SOLUTIONS
PTC RESET FUSE 60V 500MA RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0ZRP0050FF2E |
|---|---|
| Approval Agency | UL, cURus |
| Current - Hold (Ih) (Max) [Max] | 500 mA |
| Current - Max [Max] | 40 A |
| Current - Trip (It) | 1 A |
| Grade | Automotive |
| Height - Seated (Max) [Max] [z] | 11.43 mm |
| Height - Seated (Max) [Max] [z] | 0.45 in |
| Lead Spacing | 5.1 mm |
| Lead Spacing | 0.201 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc, Radial |
| Qualification | AEC-Q200 |
| Resistance - Initial (Ri) (Min) [Min] | 320 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 900 mOhms |
| Size / Dimension [x] | 7.1 mm |
| Size / Dimension [x] | 0.28 in |
| Size / Dimension [y] | 3.56 mm |
| Size / Dimension [y] | 0.14 " |
| Time to Trip | 800 ms |
| Type | Polymeric |
| Voltage - Max [Max] | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.20 | |
Description
General part information
0ZRP0050FF2E
Polymeric PTC Resettable Fuse 60V 500 mA Ih Through Hole Radial, Disc
