XB4BJ33
ActiveSCHNEIDER ELECTRIC

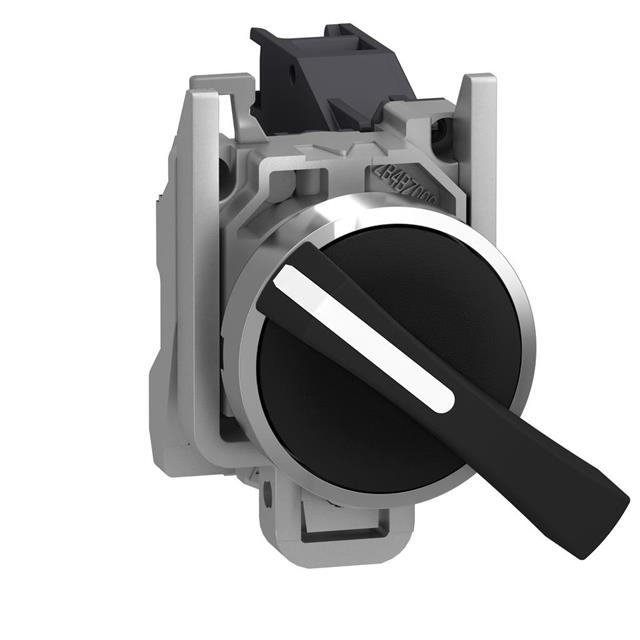

SELECTOR SWITCH, 2 POLE, 6A, 120VAC
XB4BJ33
ActiveSCHNEIDER ELECTRIC
SELECTOR SWITCH, 2 POLE, 6A, 120VAC
Description
General part information
XB4BJ33
Selector Switch 3 Position DPST-NO 6A (AC), 550mA (DC) 120 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XB4BJ33 |
|---|---|
| Approval Agency | UL, CSA |
| Circuit | DPST-NO |
| Current Rating | 550 mA, 6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K, IP69 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
