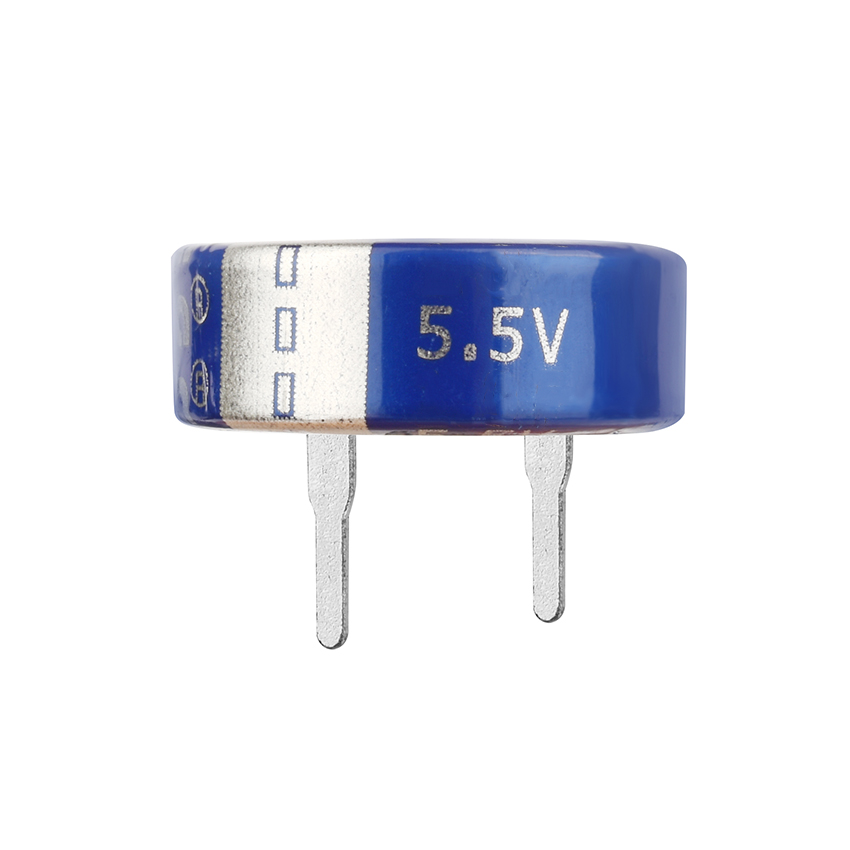

CEN5R5105CF-ZG
ActiveCDA (Zhifengwei Technology)
CAP 1.0F -20% +80% 5.5V T/C
CEN5R5105CF-ZG
ActiveCDA (Zhifengwei Technology)
CAP 1.0F -20% +80% 5.5V T/C
Description
General part information
CEN5R5105CF-ZG
CAP 1.0F -20% +80% 5.5V T/C
Technical Specifications
Parameters and characteristics for this part
| Specification | CEN5R5105CF-ZG |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 20 Ohm |
| Height - Seated (Max) | 0.335 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 5.5 V |
