Description
General part information
A79637-001

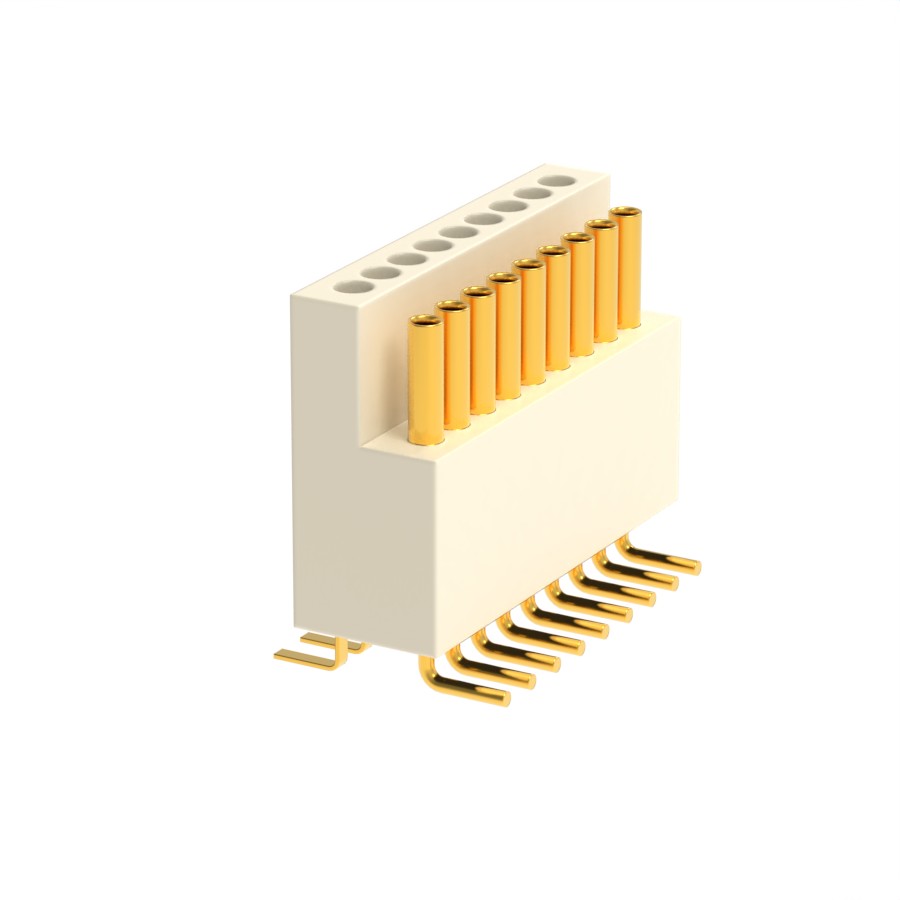

18 Position Receptacle Connector 0.025" (0.64mm) Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | A79637-001 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Per Contact) | 1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Natural |
| Insulation Height | 0.08 in |
| Insulation Material | Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.025 in |
| Row Spacing - Mating | 0.04 in |
| Style | Board |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
