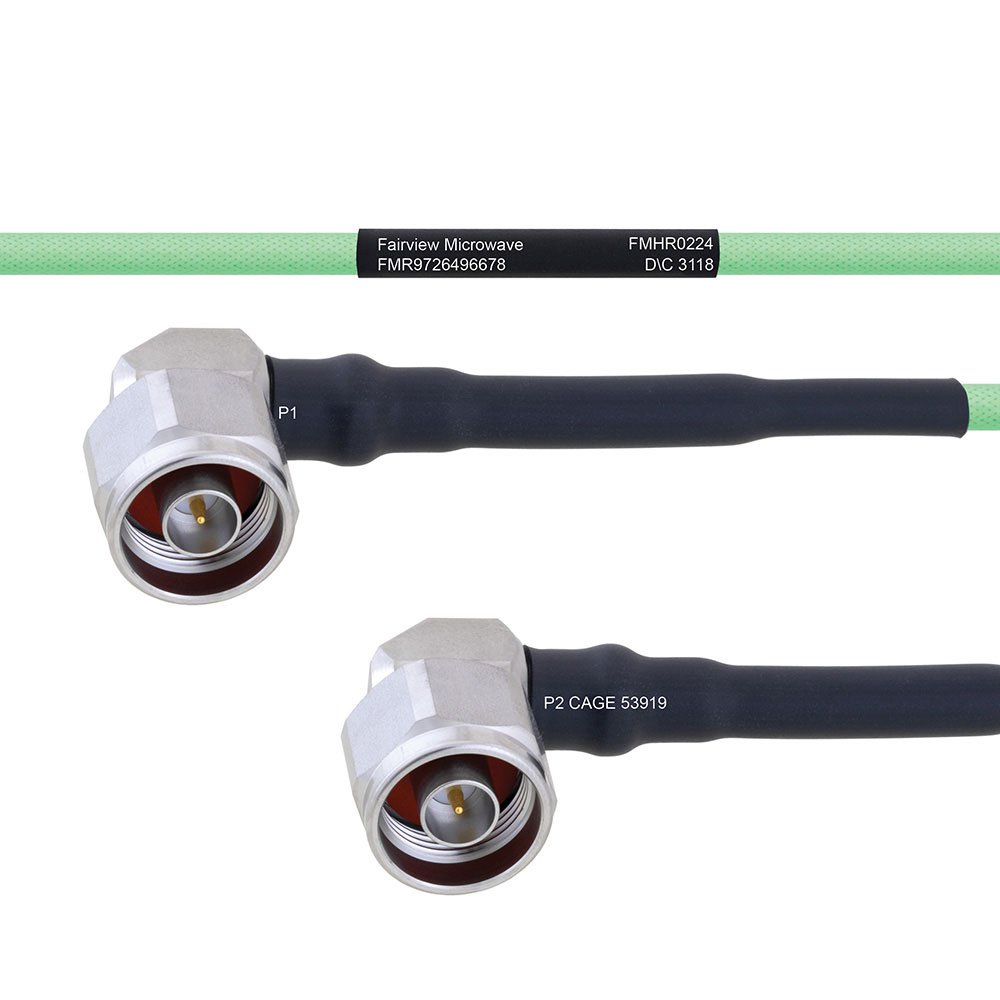

FMHR0224-30
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 3
FMHR0224-30
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 3
Description
General part information
FMHR0224-30
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0224-30 |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LL160 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 30 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
