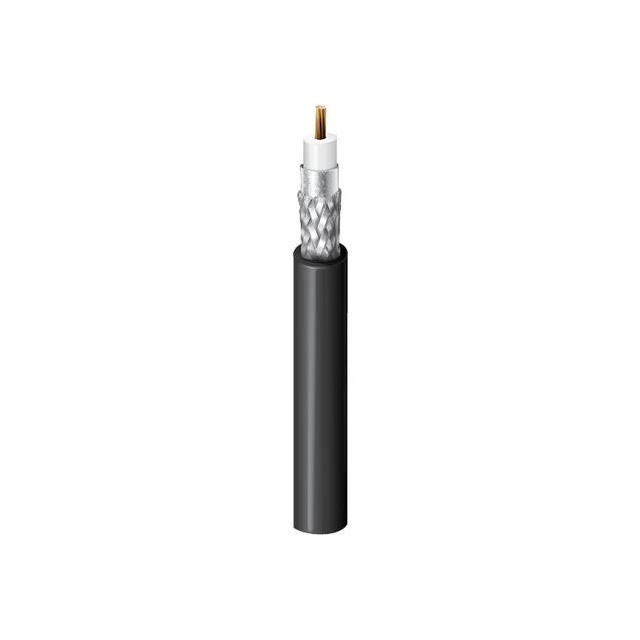

9913F7 B59100

Active

Belden Inc.

#10 FHDPE SH PVC

Search across all available documentation for this part.

Active

Belden Inc.

#10 FHDPE SH PVC

Technical Specifications

Parameters and characteristics for this part

Specification	9913F7 B59100

Cable Group	RG-8
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand [custom]	18 AWG
Conductor Strand [custom]	7
Dielectric Diameter [diameter]	7.21 mm
Dielectric Diameter [diameter]	0.284 "
Impedance	52 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	100 ft
Length [x]	30.48 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	90 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	RF Signal
VoP, Velocity of Propagation	85
Wire Gauge	10 AWG

Part	Cable Type	Jacket (Insulation) Material	Shield Coverage	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Usage	Wire Gauge	Impedance	Shield Material	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation
Belden Inc. 9913F7 B59100	Coaxial	Poly-Vinyl Chloride (PVC)	90 % 100 %	Black	18 AWG	7	Copper Bare	RF Signal	10 AWG	52 Ohms	Aluminum Polyester Copper Tinned	RG-8	10.29 mm	0.405 in	100 ft	30.48 m	Braid Foil	-40 °C	80 C	7.21 mm	0.284 "	85

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 10 AWG RG-8 100.0' (30.48m) 52 Ohms
