IQS211BEV02-S
ActiveAzoteq (Pty) Ltd
IQS211A EVALUATION KIT 2
Deep-Dive with AI
Search across all available documentation for this part.
IQS211BEV02-S
ActiveAzoteq (Pty) Ltd
IQS211A EVALUATION KIT 2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | IQS211BEV02-S | IQS211 Series |
|---|---|---|
| Current - Supply | - | 10 mA |
| Embedded | False | False |
| Interface | 1-Wire | I2C, 1-Wire |
| LED Driver Channels | - | Up to 2 |
| Mounting Type | - | Surface Mount |
| Number of Inputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -20 C |
| Package / Case | - | TSOT-23-6, SOT-23-6 Thin |
| Proximity Detection | - | True |
| Resolution | - | 8 b |
| Sensing Range | 1 Button/Key | 1 Button/Key |
| Sensor Type | Touch, Capacitive | Touch, Capacitive |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | TSOT-23-6 |
| Utilized IC / Part | IQS211A | IQS211A |
| Voltage - Supply [Max] | 3.3 V | 3.3 V |
| Voltage - Supply [Min] | 1.8 V | 1.8 V |
IQS211 Series
1 CH. CAPACITIVE PROXIMITY/TOUCH
| Part | Number of Inputs | Resolution | LED Driver Channels | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Mounting Type | Current - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Proximity Detection | Interface | Supplier Device Package | Sensing Range | Supplied Contents | Utilized IC / Part | Sensor Type | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Azoteq (Pty) Ltd IQS211A-00000000-TSR | 1 | 8 b | Up to 2 | 3.3 V | 1.8 V | SOT-23-6 Thin, TSOT-23-6 | Surface Mount | 10 mA | 85 °C | -20 C | I2C | TSOT-23-6 | ||||||
Azoteq (Pty) Ltd IQS211BEV02-S | 3.3 V | 1.8 V | 1-Wire | 1 Button/Key | Board(s) | IQS211A | Touch, Capacitive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.82 | |
Description
General part information
IQS211 Series

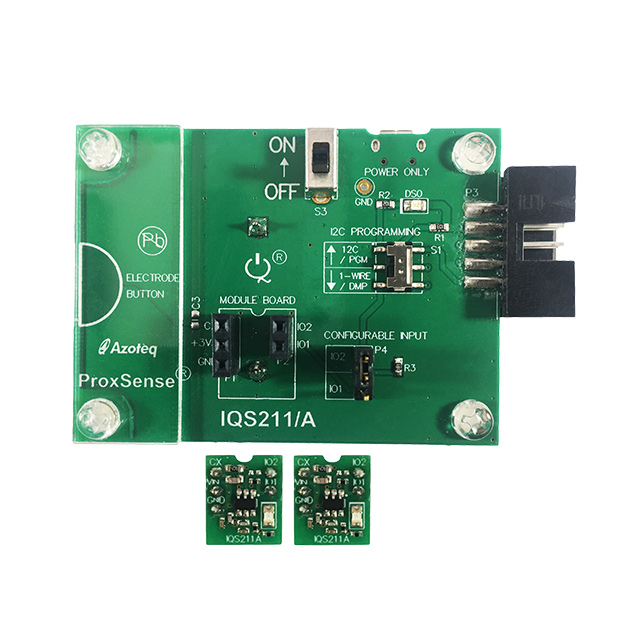

IQS211A - Touch, Capacitive Sensor Evaluation Board
Documents
Technical documentation and resources
