PWR1311AC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

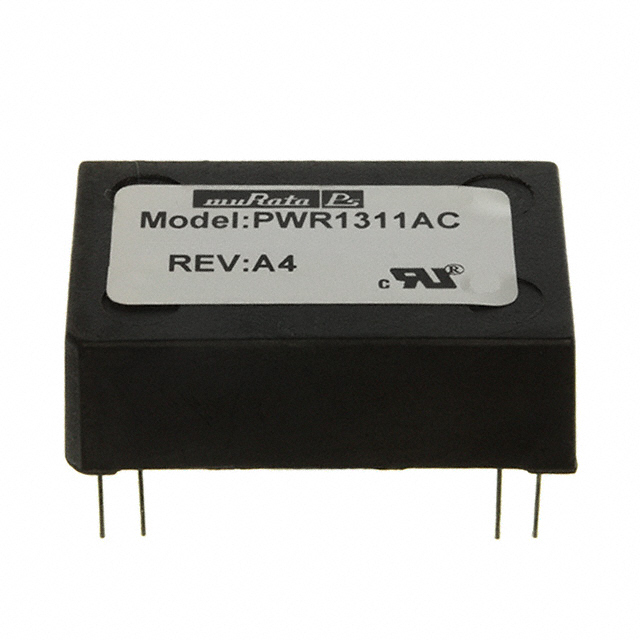

PWR1311AC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PWR1311AC	PWR13 Series

	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	50 mA	50 mA
Current - Output (Max)	50 mA	50 - 150 mA
Current - Output (Max)	-	125 - 300 mA
Current - Output (Max)	-	150 mA
Efficiency	75 %	75 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	100 °C	85 - 100 °C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Package / Case	9 PC Pad	9 PC Pad
Package / Case	24-DIP Module	24-DIP Module
Power (Watts)	2 W	2 W
Size / Dimension	20.5 mm, 32.3 mm, 10.2 mm	10.2 - 32.3 mm
Size / Dimension [x]	1.27 in	1.27 in
Size / Dimension [y]	0.81 in	0.81 in
Size / Dimension [z]	0.4 "	0.4 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	5.5 - 13.2 V
Voltage - Input (Min) [Min]	10.8 V	4.5 - 10.8 V
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	15 V	5 - 15 V
Voltage - Output 2	-15 V	-15 - -5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 39.05
		25	$ 37.87
		50	$ 33.00
		100	$ 31.59
		250	$ 30.87

PWR13 Series

ISOLATED THROUGH HOLE DC/DC CONVERTER, UNREGULATED, ITE, 1:1, 1.5 W, 1 OUTPUT, 5 V, 300 MA

Part	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Applications	Voltage - Isolation	Number of Outputs	Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Murata Power Solutions Inc. PWR1300AC	10.2 mm, 20.5 mm, 32.3 mm	1.27 in	0.81 in	0.4 "	4.5 V	5 V	Through Hole	5.5 V	300 mA	75 %	ITE (Commercial)	4000 V	1	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module
Murata Power Solutions Inc. PWR1303AC
Murata Power Solutions Inc. PWR1306AC	10.2 mm, 20.5 mm, 32.3 mm	1.27 in	0.81 in	0.4 "	10.8 V	5 V	Through Hole	13.2 V	300 mA	75 %	ITE (Commercial)	4000 V	1	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module
Murata Power Solutions Inc. PWR1311AC	10.2 mm, 20.5 mm, 32.3 mm	1.27 in	0.81 in	0.4 "	10.8 V	15 V	Through Hole	13.2 V		75 %	ITE (Commercial)	4000 V	2	Isolated Module	2 W	100 °C	-55 °C	9 PC Pad	24-DIP Module	50 mA	50 mA	-15 V
Murata Power Solutions Inc. PWR1300AC
Murata Power Solutions Inc. PWR1303AC	10.2 mm, 20.5 mm, 32.3 mm	1.27 in	0.81 in	0.4 "	4.5 V	5 V	Through Hole	5.5 V		75 %	ITE (Commercial)	4000 V	2	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module		150 mA	-5 V	150 mA
Murata Power Solutions Inc. PWR1307AC
Murata Power Solutions Inc. PWR1301AC	10.2 mm, 20.5 mm, 32.3 mm	1.27 in	0.81 in	0.4 "	4.5 V	12 V	Through Hole	5.5 V	125 mA	75 %	ITE (Commercial)	4000 V	1	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module
Murata Power Solutions Inc. PWR1307AC	10.2 mm, 20.5 mm, 32.3 mm	1.27 in	0.81 in	0.4 "	10.8 V	12 V	Through Hole	13.2 V	125 mA	75 %	ITE (Commercial)	4000 V	1	Isolated Module	2 W	85 °C	-40 °C	9 PC Pad	24-DIP Module

Description

General part information

PWR13 Series

Isolated Module DC DC Converter 2 Output 15V -15V 50mA, 50mA 10.8V - 13.2V Input

Documents

Technical documentation and resources
