3502-12-710

Active

Coto Technology

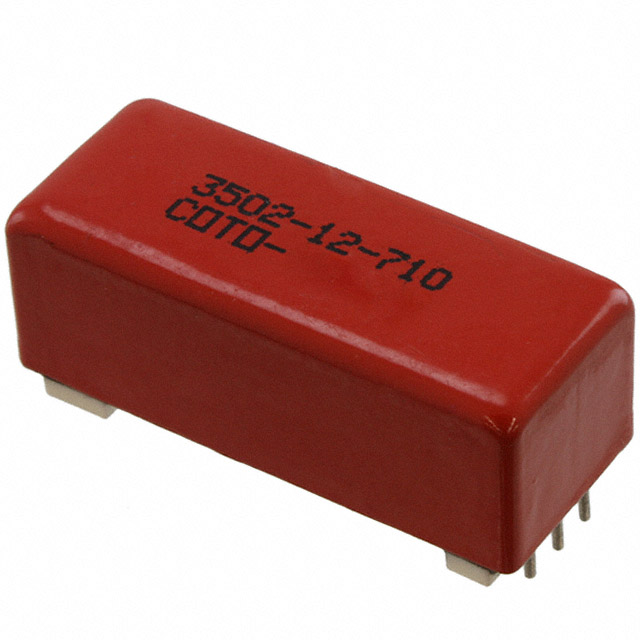

RELAY REED DPST 500MA 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3502-12-710

Active

Coto Technology

RELAY REED DPST 500MA 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3502-12-710	3502 Series

Coil Current	6 mA	6 - 14.3 mA
Coil Resistance	2 kOhms	2 - 350 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	5 - 12 VDC
Contact Form	DPST-NO (2 Form A)	DPST-NO (2 Form A)
Contact Rating (Current)	0.5 A	0.5 A
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	9 VDC	3.8 - 9 VDC
Must Release Voltage	1 VDC	0.4 - 1 VDC
Operate Time	750 µs	750 µs
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.1 ms	0.1 ms
Seal Rating	Sealed - Hermetically	Sealed - Hermetically
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	PC Pin	PC Pin

3502 Series

RELAY REED DPST 500MA 5V

Part	Seal Rating	Switching Voltage	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Form	Coil Voltage	Coil Resistance	Must Operate Voltage	Coil Type	Termination Style	Operate Time	Must Release Voltage	Coil Current	Contact Rating (Current)
Coto Technology 3502-05-510	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	5 VDC	350 Ohms	3.8 VDC	Non Latching	PC Pin	750 µs	0.4 VDC	14.3 mA	0.5 A
Coto Technology 3502-05-511	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	5 VDC	350 Ohms	3.8 VDC	Non Latching	PC Pin	750 µs	0.4 VDC	14.3 mA	0.5 A
Coto Technology 3502-05-711	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	5 VDC	350 Ohms	3.8 VDC	Non Latching	PC Pin	750 µs	0.4 VDC	14.3 mA	0.5 A
Coto Technology 3502-05-811	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	5 VDC	350 Ohms	3.8 VDC	Non Latching	PC Pin	750 µs	0.4 VDC	14.3 mA	0.5 A
Coto Technology 3502-12-710	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	12 VDC	2 kOhms	9 VDC	Non Latching	PC Pin	750 µs	1 VDC	6 mA	0.5 A
Coto Technology 3502-05-710	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	5 VDC	350 Ohms	3.8 VDC	Non Latching	PC Pin	750 µs	0.4 VDC	14.3 mA	0.5 A
Coto Technology 3502-05-810	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	5 VDC	350 Ohms	3.8 VDC	Non Latching	PC Pin	750 µs	0.4 VDC	14.3 mA	0.5 A
Coto Technology 3502-05-911	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	5 VDC	350 Ohms	3.8 VDC	Non Latching	PC Pin	750 µs	0.4 VDC	14.3 mA	0.5 A
Coto Technology 3502-12-810	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	12 VDC	2 kOhms	9 VDC	Non Latching	PC Pin	750 µs	1 VDC	6 mA	0.5 A
Coto Technology 3502-12-510	Sealed - Hermetically	200 VDC, 200 VAC	0.1 ms	85 °C	-20 C	Through Hole	DPST-NO (2 Form A)	12 VDC	2 kOhms	9 VDC	Non Latching	PC Pin	750 µs	1 VDC	6 mA	0.5 A
