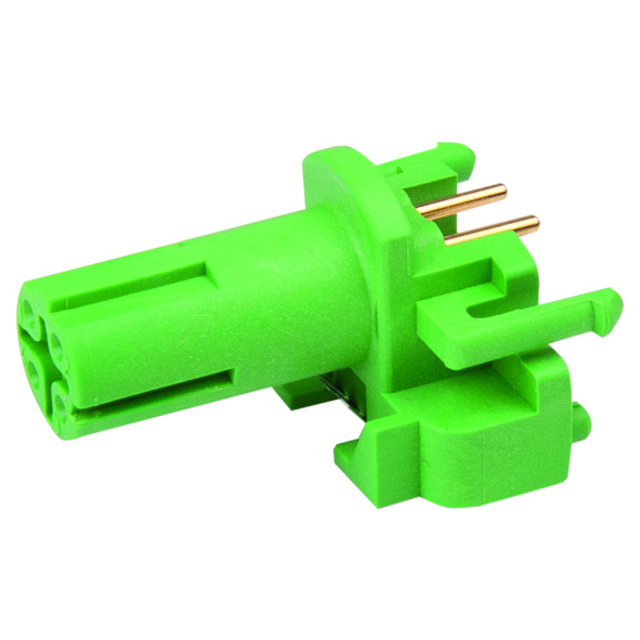

CU-CN M12D-BS C5 THR W/O HOUS

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN M12D-BS C5 THR W/O HOUS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100007553	J80120 Series

Applications	Industrial	Industrial
Color	Green	Green, Silver
Connector Type	Female Sockets, Insert	Female Sockets, Insert, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze	Bronze
Features	Board Lock, Requires Shell, Insert Only	Board Lock, Requires Shell, Insert Only
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Feature	-	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	Through Hole	Through Hole, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	D	D
Primary Material	-	Metal
Shell Finish	-	Nickel
Shell Material	-	Brass and Zinc Die Cast
Shell Size - Insert	M12-4	M12-4
Shielding	Unshielded	Unshielded
Termination	Solder	Solder

CU-CN M12D-BS C5 THR W/O HOUS

Part	Termination	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color	Insert Material	Applications	Contact Finish - Mating	Ingress Protection	Orientation	Features	Contact Material	Shell Size - Insert	Mounting Type	Connector Type	Shielding	Primary Material	Shell Finish	Shell Material	Mounting Feature
Telegartner Inc 100007553	Solder	4	85 °C	-40 °C	Green	Nylon, Polyamide (PA)	Industrial	Gold	IP67 - Dust Tight, Waterproof	D	Board Lock, Insert Only, Requires Shell	Bronze	M12-4	Through Hole	Female Sockets, Insert	Unshielded
Telegartner Inc 100007549	Solder	4	85 °C	-40 °C	Silver	Nylon, Polyamide (PA)	Industrial	Gold	IP67 - Dust Tight, Waterproof	D		Bronze	M12-4	Panel Mount, Through Hole	Female Sockets, Plug	Unshielded	Metal	Nickel	Brass and Zinc Die Cast	Bulkhead - Front Side Nut
Telegartner Inc 100007433	Solder	4	85 °C	-40 °C	Silver	Nylon, Polyamide (PA)	Industrial	Gold	IP67 - Dust Tight, Waterproof	D		Bronze	M12-4	Panel Mount, Through Hole	Female Sockets, Plug	Unshielded	Metal	Nickel	Brass and Zinc Die Cast	Bulkhead - Rear Side Nut
Telegartner Inc 100007432	Solder	4	85 °C	-40 °C	Silver	Nylon, Polyamide (PA)	Industrial	Gold	IP67 - Dust Tight, Waterproof	D		Bronze	M12-4	Panel Mount, Through Hole	Female Sockets, Plug	Unshielded	Metal	Nickel	Brass and Zinc Die Cast	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Data) Position Circular Connector Insert, Female Sockets Solder
