51-475.036

Active

EAO

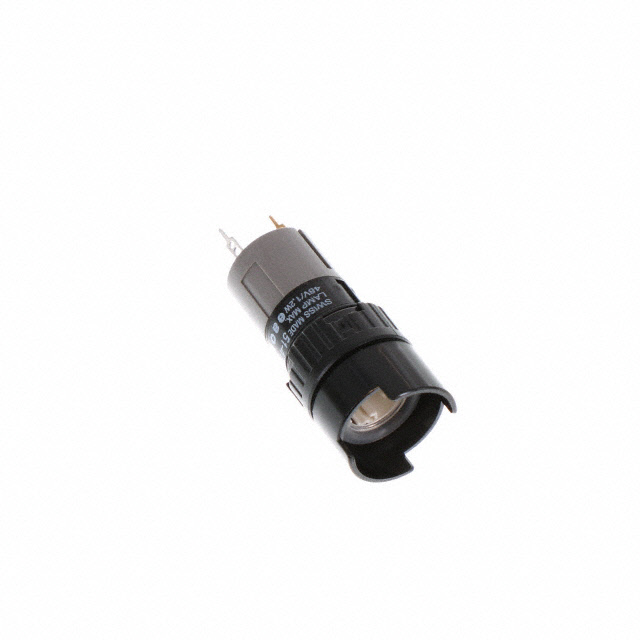

SWITCH PB SPST-NO 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NO 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	51-475.036

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	100 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-On
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

SWITCH PB SPST-NO 0.1A 42V

Part	Panel Cutout Dimensions [diameter]	Mechanical Life	Switch Function	Actuator Marking	Voltage Rating - AC	Circuit	Ingress Protection	Current Rating (Amps)	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Termination Style	Voltage Rating - DC
EAO 51-475.036	16 mm	1000000 Cycles	Off-On	No Marking	42 V	SPST-NO	IP65 - Dust Tight, Water Resistant	100 mA	Round, Button (Not Included)	55 °C	-25 °C	Panel Mount, Front	Standard	PC Pin, Solder Lug	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
