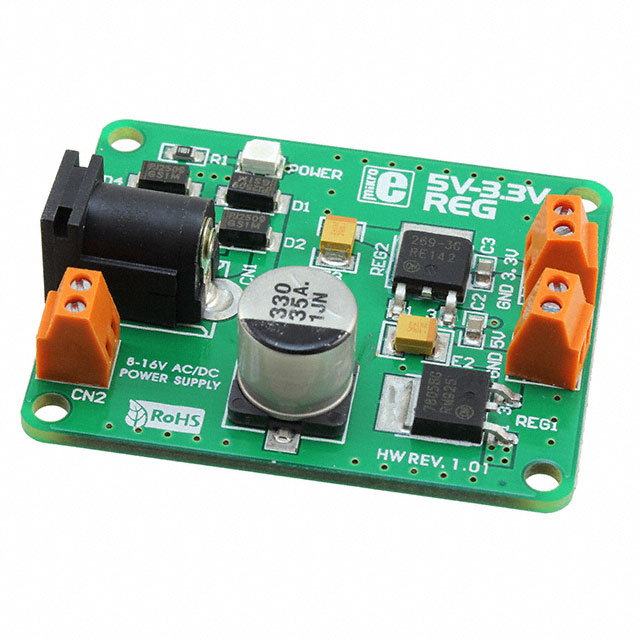

MIKROE-192
ActiveMikroElektronika
BOARD VREG LM7805 MC33269DT-3.3
MIKROE-192
ActiveMikroElektronika
BOARD VREG LM7805 MC33269DT-3.3
Description
General part information
MIKROE-192
LM7805, MC33269 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | MIKROE-192 |
|---|---|
| Board Type | Fully Populated |
| Channels per IC (Count) | 1 |
| Channels per IC (Single) | 1 |
| Channels per IC (Type) | Single |
| Contents | Board |
| Current - Output (Max) | 1 A |
| Current - Output (Min) | 800 mA |
| Regulator Type | Positive Fixed |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MC33269, LM7805 |
| Voltage - Input (Range 1) Maximum | 16 V |
| Voltage - Input (Range 1) Minimum | 8 V |
| Voltage - Input (Range 2) Maximum | 16 V |
| Voltage - Input (Range 2) Minimum | 8 V |
| Voltage - Output | 5 VDC, 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
