Description
General part information

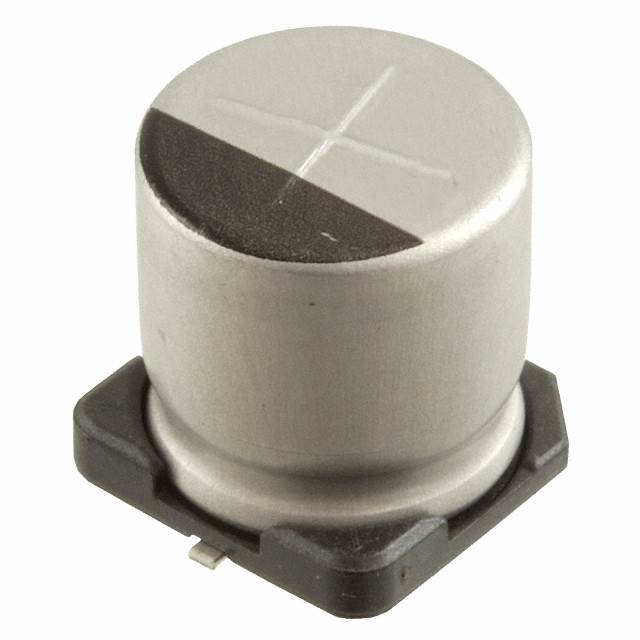

UCD1E151MCL6GS
150 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UCD1E151MCL6GS |
|---|---|
| Applications | Automotive |
| Capacitance | 150 µF |
| Height - Seated (Max) | 0.323 in |
| Impedance | 180 mOhm |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 600 mA, 300 mA |
| Size / Dimension Diameter | 0.394 in |
| Surface Mount Land Length | 0.406 in |
| Surface Mount Land Width | 0.406 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
