KGU02ACG1E6R0CH
ActiveKYOCERA AVX
CAP CER 6PF 25V C0G 01005
KGU02ACG1E6R0CH
ActiveKYOCERA AVX
CAP CER 6PF 25V C0G 01005
Description
General part information
KGU02ACG1E6R0CH

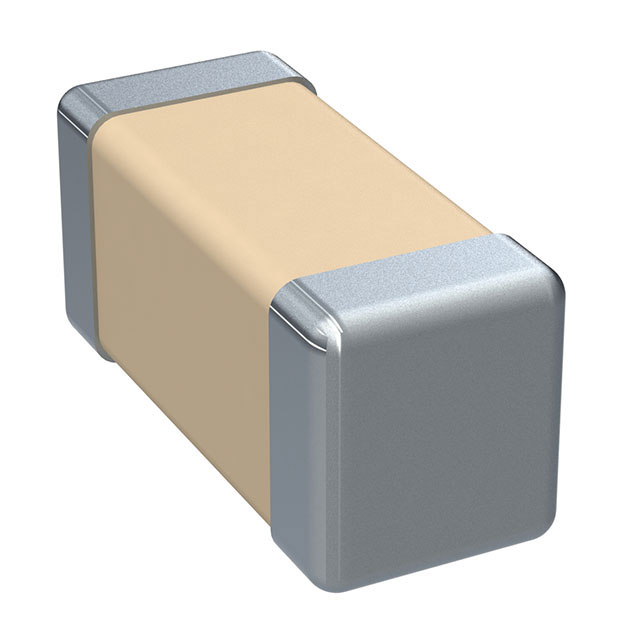

6 pF ±0.25pF 25V Ceramic Capacitor C0G, NP0 01005 (0402 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | KGU02ACG1E6R0CH |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 6 pF |
| Features | High Q, Low Loss |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 01005 (0402 Metric) |
| Size / Dimension Length | 0.016 in |
| Size / Dimension Width | 0.008 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.009 in |
| Tolerance | 0.25 pF |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
