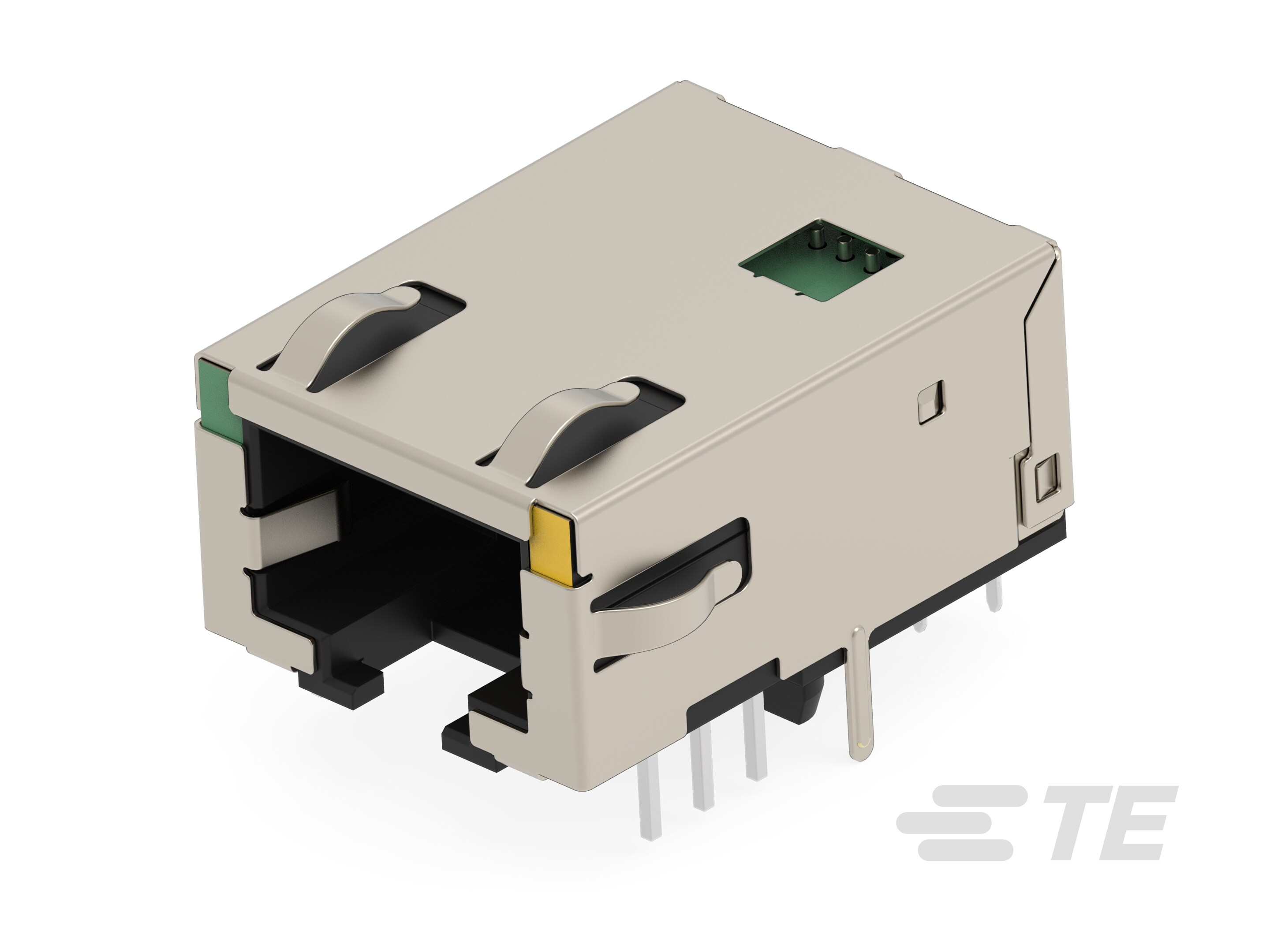

2489079-1
ActiveTE Connectivity AMP Connectors
RJ45 W/MAGNET 1X1 10G LED PLATING T 50
2489079-1
ActiveTE Connectivity AMP Connectors
RJ45 W/MAGNET 1X1 10G LED PLATING T 50
Description
General part information
2489079-1
RJ45 Connector, Single Port, 1 x 1, Jack, Shielded, Cat 6A, Standard - Latch Down, 8 Position, Low Profile, Through Hole - Solder, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 2489079-1 |
|---|---|
| Applications | AutoMDIX, 10G Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Height Above Board | 0.445 in |
| LED Color | Yellow, Green - Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 8 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down |
| Termination | Solder |
