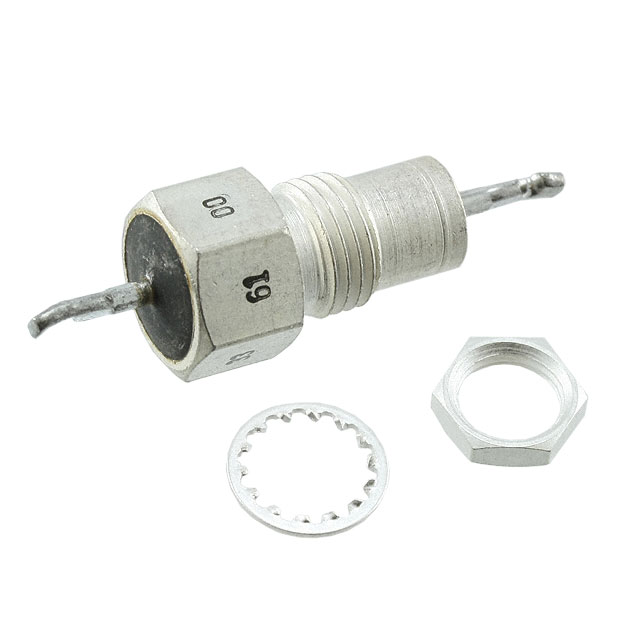

M15733/61-0004
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 2000PF CHASSIS
M15733/61-0004
ActiveTusonix a Subsidiary of CTS Electronic Components
FILTER LC(PI) 2000PF CHASSIS
Description
General part information
M15733/61-0004
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 2000pF 25 A Axial, Bushing - 2 Notched Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | M15733/61-0004 |
|---|---|
| Attenuation Value | 55 dB |
| Capacitance | 2000 pF |
| Current | 25 A |
| ESD Protection | No |
| Filter Order | 3 |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 2 Leads |
| Package Name | Bushing, Axial |
| Size / Dimension Diameter | 0.375 in |
| Size / Dimension Length | 0.687 in |
| Technology | LC (Pi) |
| Type | Low Pass |
| Voltage - Rated | 500 V |
